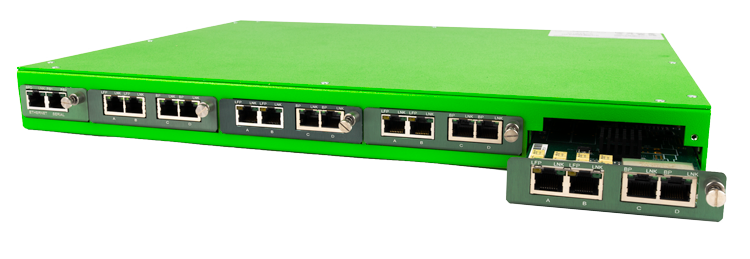

Modular Network TAP Platform
Modular Network TAPs for 10/100/1000M (1G) networks.
A Scalable and Flexible Solution
The Modular Network TAP platform is a scalable and flexible line of Network TAP modules. The platform is ideal for both IT and OT networks where multiple media types are present and speeds are 1G or lower.
FLEXIBLE
- Mix & Match TAP modules
- Media conversion
- TAPs are hot swappable
- Supports SNMP and Syslog
SCALABLE
- Add chassis and TAP modules as needed
- Adjust TAP modes as needed
- 2U chassis fits 12 TAPs!
ROBUST
- Leverage backplane connections for filtering, aggregation
- Layer 2, 3 and 4 Filtering
- MTBF is 150,000+ hours
SECURE
- Redundant power supplies
- Supports jumbo frames and passes physical errors
- TAA compliant
- Country of Origin: USA
Deployment Examples
Aggregate on the backplane to 2 sensors
Aggregate multiple network segments to be monitored by multiple tools.

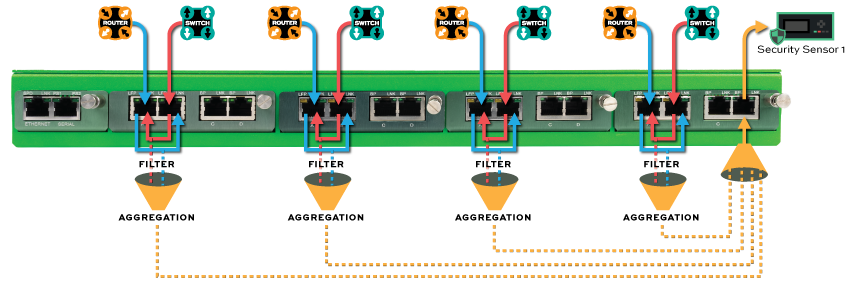

Filter and aggregate to 1 sensor
Filter specific traffic and aggregate from multiple sources to a single monitoring point.
Design a TAP solution in 4 easy steps
Click on each option below to configure your custom solution
Choose one (1) Chassis
1U - holds up to (4) TAP modules
Dimensions: 17.40" Width x 1.75" Height x 13.45" Depth
Weight: 8.0 lbs

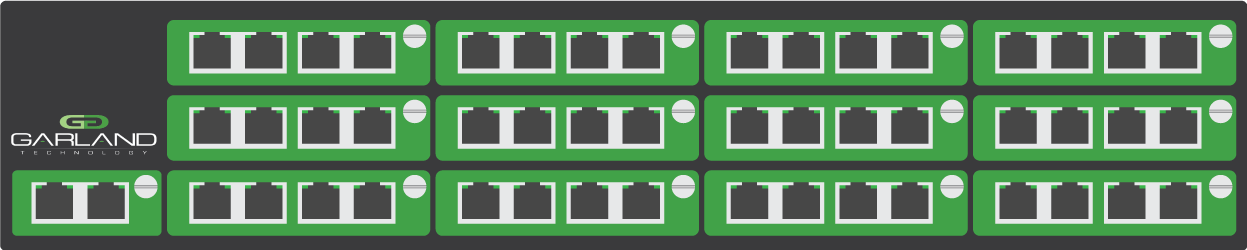

2U - holds up to (12) TAP modules
Dimensions: 17.40" Width x 3.47" Height x 13.45"
Weight: 9.0 lbs
Choose one (1) Power Supply
Two power supplies are included with each chassis.
Note: Both chassis are able to work with a single power input. Best practice is using the two (2) supplied power inputs connected to separate power sources to help safeguard the device against power failure.
AC Power
100-240VAC
DC Power
36-60VDC
Power Specifications
Choose the TAP modules
Multiple modules are offered in the Platform. Modules are organized by Network Speed, Media Type, and TAP Mode. All modules fit inside the 1U and 2U chassis in any combination. Simply slide the module into an open slot until a click is heard.
Choose one (1) Management option

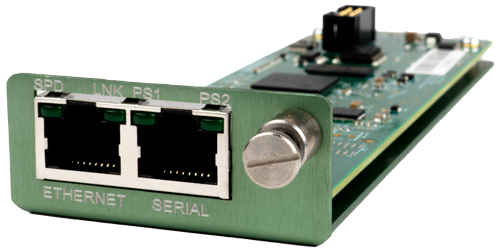

Management
There is a RJ-45 Serial Management port and an Ethernet RJ-45 Management port that allows access to the Command Line Interface (CLI). This enables the chassis to be connected to the network for remote management via a web browser once the network configuration is set-up.
Note: Users can export and import the Chassis and Module configurations. Chassis Controller stores all configurations and can be removed and added to another Chassis to help duplicate the configuration during set-up. If choosing to forego the Chassis Controller, one can be added at later date.
No Management
Tray with Power LED's for M1G1xxE and M1G2xxE Chassis (1) is required if you do not purchase a management card M1GC (M1GL is a blanking plate with (2) LED's showing if power supplies are ON or OFF.)
Management Options
