Network Packet Brokers (NPBs)
A Hybrid Bypass Network TAP

Network Packet Brokers (NPBs) are hardware devices that provide monitoring and security tools access to traffic from one to many network links. Network Packet Brokers centralize network traffic making the tools function more efficiently by sharing packets between monitoring/security appliances. Additional features include: filtering, aggregating, regenerating, and load balancing.
  • Available in 1G/10G/40G/100G network speeds
  • Modular 1U, 2U Chassis or 1U Integrated Systems
  • Supports all media - copper (TX), short range ( SX and SR) and long range (LX, ZX, LR, ER) fiber
  • Multi-mode or single-mode
  • Supports heartbeats for port pairs
  • All features are included - no per-port licensing fees
  • 100% network visibility
  • 100% secure and invisible; no IP address; no Mac address; cannot be hacked
  • Made, tested & certified in the USA


Modular Packe tBroker System


M1G1ACE 1A-1U Chassis-2017-LR.png

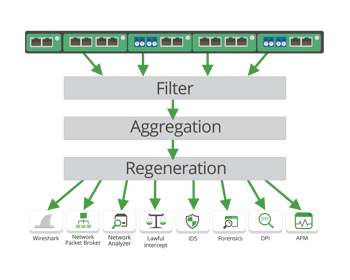

Modular Packet Broker System

  • Supports 1G networks
  • Flexible design; accommodates any network scenario
  • High density data center solution:
    1U = 4 TAPS | 2 U = 12 TAPS
  • Remote Access with GUI or CLI
  • Port Mapping to layers 2, 3, and 4
  • Media Conversion: Fiber (SX, LX, ZX) and copper (TX)
  • Multi-Tier Filtering supports MAC, VLAN, IP, DSCP, TCP, UDP

See Complete Specifications



EdgeLens® In-line Security Packet Broker System

  • Supports filtering, aggregating, load balancing, and regeneration
  • TAP a 1G link - or - a 10G link and deliver data to 1G and 10G appliances
  • TAP once and connect multiple in-line appliances
  • Integrated 1U chassis bypass TAP system
  • Dual AC hot swappable power supplies
  • 1 Management port; 1 Console port

See Complete Specifications


PB100 10G_40G_100G 32 Port Packet Broker System.png

PB100 10G/40G/100G Packet Broker System

  • 24 and 32 ports
  • Aggregate network traffic to single or multiple tools
  • Session/flow aware load balancing
  • Up to 4,000 filter rules
  • Flow replication and port monitoring
  • Hot swappable & redundant AC power supplies
  • Time stamping with PB100G24AC

See Complete Specifications


Filtering, Aggregation, and Load Balancing System by Garland Technology

FAB: Filtering, Aggregating and Load Balancing Integrated System

  • Aggregate your network traffic to a single tool
  • Load balance at high network speeds across multiple appliances
  • Any-to-Any configurations: 1Gb, 10Gb and 40Gb
  • All ports can be configured as input or monitoring
  • Remote network management (RMON) with GUI or CLI interface
  • AC or DC hot swappable power supplies
  • Copper SFPs support 10/100/1000 base

See Complete Specifications
