Aggregators

Aggregate copies of SPAN inputs and TAP links in 10M/100M/1G networks.

Garland Technology Aggregators collect SPAN or tapped traffic from multiple links and aggregate copies to one or two monitoring ports, giving out-of-band security and monitoring tools complete visibility. Every unit features a hardware Data Diode design that makes it impossible to send packets back into the network. Use the search to jump straight to a part number.

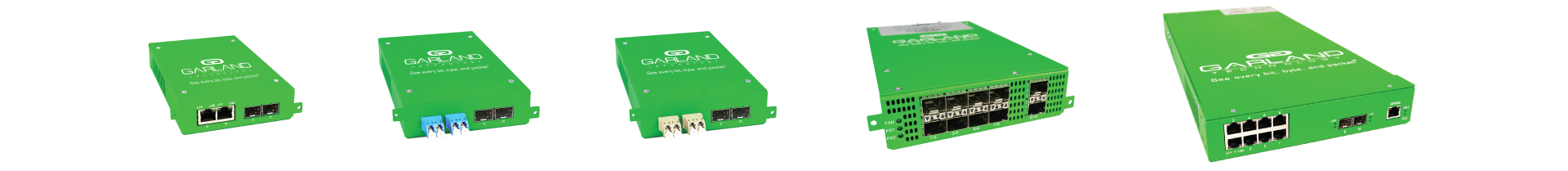

Garland Technology Aggregators
Showing 6 of 6 products
Portable Aggregator Regeneration Data Diode Coming Soon!
P1GCSSP
Ports4
Ports 1 & 210 / 100 / 1G RJ-45 Copper
Ports 3 & 41G SFP
Speed10 / 100 / 1G
Common Use Cases1×3 Regen, 3×1 Agg, 2×2 Agg
ManagementUnmanaged

(3) unidirectional outputs or (1) aggregated copy or (2) aggregated copies of 1, 2, or 3 inputs. All outputs are unidirectional.

View product
Portable Aggregator Regeneration Data Diode Coming Soon!
P1GMSASP
Ports4
Ports 1 & 21G-SX MMF LC
Ports 3 & 41G SFP
Speed1G
Common Use Cases2×2, 2 input w/ 2 Aggregated outputs
ManagementUnmanaged

Unidirectional output (2) regen copies or (2) aggregated copies of (2) inputs. All outputs are unidirectional.

View product
Portable Aggregator Regeneration Data Diode Coming Soon!
P1GSSASP
Ports4
Ports 1 & 21G-LX SMF LC
Ports 3 & 41G SFP
Speed1G
ManagementUnmanaged
Common Use Cases2×2, 2 input w/ 2 Aggregated outputs

Unidirectional output (2) regen copies or (2) aggregated copies of (2) inputs. All outputs are unidirectional.

View product
1U Third-Rack Aggregator Regeneration Data Diode Coming Soon!
INT1G10SSASP
Ports10
Ports 1-810 / 100 / 1G SFP
Ports 9-10100 / 1G / 10G SFP+
Speed10 / 100 / 1G in, 1G / 10G out
ManagementSerial

Aggregate up to (8) inputs and send aggregated copies unidirectionally to 1 or 2 connected sensors.

View product
1U Half-Rack Aggregator Regeneration Data Diode Coming Soon!
INT1G10CSASP/INT1G10CSASPDC
Ports10
Ports 1-810 / 100 / 1G RJ-45 Copper
Ports 9-101G SFP
Speed10 / 100 / 1G
ManagementSerial

Aggregate up to (8) inputs and send aggregated copies unidirectionally to 1 or 2 connected sensors.

View product
1U Half-Rack Aggregator TAP Regeneration Data Diode Coming Soon!
INT1G10CSA/INT1G10CSADC
Ports10
TAPs4
TAP Media10 / 100 / 1G Copper
Monitoring Ports(2) 1G SFP
Speed10 / 100 / 1G
Common Use CasesAggregation, Breakout, Regeneration
ManagementSerial

Aggregate up to (4) Network TAPs and send aggregated copies unidirectionally to 1 or 2 connected sensors.

View product
