Breakout Network TAPs
Passive Fiber and Copper Network Visibility
Provide Complete Packet Visibility
Garland Technology’s network TAPs (Test Access Points) make full duplex copies of network data without affecting network traffic, providing the complete visibility that high-performance monitoring and security solutions require.
TAP 'Breakout' (often referred to as just TAP or TAP mode) is the most common function TAPs provide. 'Breakout' sends each side of traffic to separate monitoring ports. Ensuring that no packet is lost to high-priority monitoring tools. Learn more about Network TAPs.
Garland's Breakout TAPs:
- Are purpose-built for packet visibility
- Provide 100% full duplex traffic
- Eliminate blind spots
- Improve network monitoring tool efficiency
- 100% secure and invisible to the network
Passive Fiber Network TAPs
Garland Technology’s Passive Fiber Test Access Points (TAPs) are high-density, non-powered devices that makes a full copy of any network’s data without affecting network traffic, providing visibility and the high-performance monitoring solution required to efficiently manage even the most complex network infrastructure.
Garland Technology offers fiber network TAPs in network speeds of 1G, 10G, 25G, 40G, 100G and 400G, and the industry’s first Optical Multi-Mode 5 (OM5) media type for extended long-range and short-range data center applications and their environments.
SelectTAPTM: Fiber Modular Chassis
Ultimate flexibility and scalability for data center visibility
- Supports speeds of 1G/10G/25G/40G/100/400G
- Accommodates 16 to 24 TAP modules
- Supports single-mode and multi-mode OS1, OS2, OM1, OM2, OM3, OM4, OM5
- Supports Cisco BiDirectional optical technology
- Supports MPO/MTP brand connectors
- Passive, no power source required

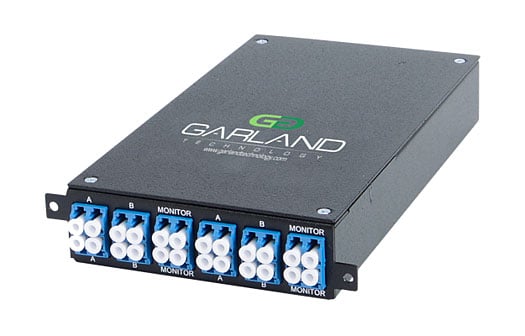

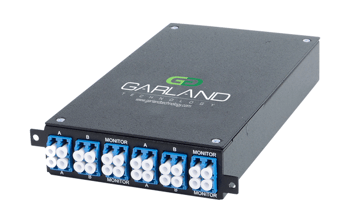

Single-mode Passive Fiber Network TAPs
Single-mode fiber for long-range connectivity
- Supports speeds of 1G/10G/25G/40G/100G
- Various split ratios available
- Portable module with 1, 2, 3, or 4 TAPs, 1U rack mount holds up to 4 modules
- Exclusive High Density 1U chassis with 28 or 56 TAPs
- Plug & Play installation; no power source needed
- Industry standard LC Connectors

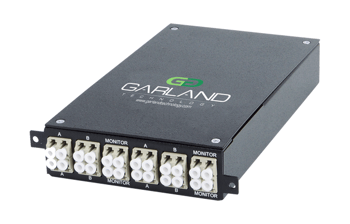

Multi-mode Passive Fiber Network TAPs
Multi-mode fiber for short-range connectivity
- Supports speeds of 1G/10G/25G/40G/100G
- Various split ratios available
- Portable module with 1, 2, 3, or 4 TAPs, 1U rack mount holds up to 4 modules
- Exclusive High Density 1U chassis with 28 or 56 TAPs
- Plug & Play installation; no power source needed
- New Prism based technology to reduce bit errors

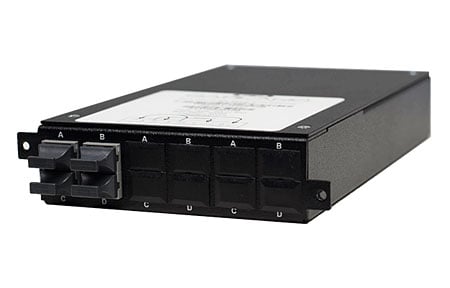

MPO/MTP® Multi-mode Passive Fiber Network TAPs
Portable high speed 40G/100G-SR4 or 100G-SR10
- Multi-mode fiber in either MTP-12 (40G/100G) or MTP 24 (100G)
- MTP® brand connectors for lowest dB loss
- Portable module with 1, 2, or 3 TAPs, 1U rack mount holds up to 4 modules
- Plug & Play installation; no power source needed
BiDi Passive Fiber Network TAPs
Supports Cisco BiDirectional optical technology
- Unique design provides flexibility to TAP multi-mode OM3/OM4/OM5 fiber types
- Portable module with 1, 2, or 3 TAPs, 1U rack mount holds up to 4 modules
- Exclusive High Density 1U chassis with 21 TAPs
- Plug & Play installation; no power source needed
Copper Network TAPs
Garland Technology’s copper TAPs sets the industry’s benchmark with features, including failsafe technology, power over ethernet (PoE), link speed synchronization, link failure propagation, and utilization rules and alerts, providing the visibility required to efficiently manage the most complex copper network infrastructures.
Find the Perfect Copper TAP Solution
Use our interactive tool to configure the ideal Copper TAP for your network. Simply answer a few questions about your network environment, and we'll guide you to the best TAP solution tailored to your specific requirements.
Configure Now

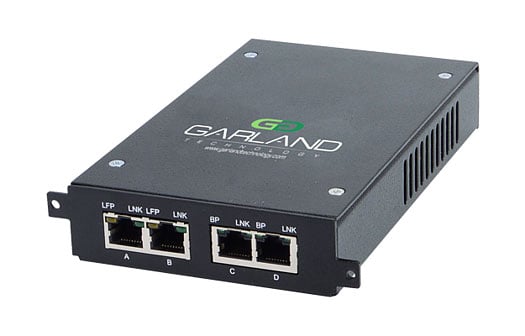

Copper Network TAP
Portable TAP for 1G copper network monitoring and troubleshooting
- Supports speeds of 10M/100M or 10/100/1000M (1G)
- Failsafe or passive design available
- Link failure propagation
- 1U rack mount holds up to 4 TAPs
- Portable, Plug & Play
Copper Modular Network TAP
Data Center Solutions for 1G network monitoring
- Exclusive high density 1U support 4 TAPs and 2U supports 12 TAPs
- Hot swappable
- Link failure propagation
- Supports jumbo frames

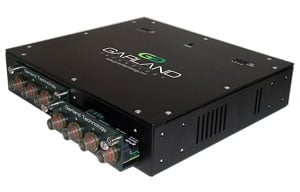

Military-Grade Industrial Network TAP
Rugged modular 1/2 rack for extreme environments
- Captures full duplex traffic up to 2Gbps without dropping packets
- Supports link speed synchronization
- Supports jumbo frames
- Passes physical errors
- Applications: Military Vehicles, Utility Vehicles, Aircraft
Regeneration TAPs

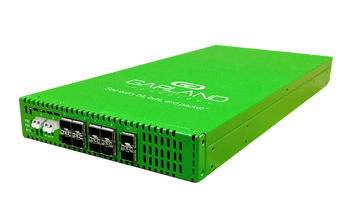

RegenTAP: 1x5
1x5 Replication provides 5 tap 'breakout' copies of traffic from a single link
- Supports 10G, 1/2 rack 1U Chassis
- Network failsafe or passive design
- OEO design [optical to electric to optical]
- Plug and play; no management

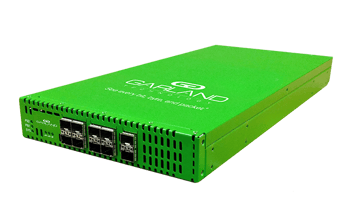

RegenTAP: Dual Breakout
Dual Breakout provides multiple tap ‘breakout’ copies of traffic from single link
- Supports 10G | 2 TAPs-in-1, 1/2 rack 1U Chassis
- Ideal for direct connect, SFP, QSFPs, active cable infrastructures.
- Network Failsafe or passive design
- OEO design [optical to electric to optical]
- Plug and play; no management
RegenTAP: Passive
1x3 Replication provides 2 tap 'breakout' or 3 SPAN copies of traffic from a single link
- Supports speeds of 1G/10G/25G/40G/100G
- Available in portable, modular, high density
- Easy configuration, no power required
- Supports jumbo frames
- Optional one or two segment configurations per module
- Passes physical errors
