Copper Network TAPs

10M/100M or 10/100/1000M (1G)  |  Portable
  • Portable Copper TAP
  • Portable Copper TAP
  • PT100
  • Rack Mount Copper TAPs
  • P100CCA
  • Copper High Density Aggregator Network TAP
  • INT1G10CSA
  • INT1G10CSA

Request a Quote

Network test access points (TAPs) are hardware tools that allow you to monitor your network. These purpose-built hardware devices copy 100% of your networks data allowing your monitoring tools to see every bit, byte and packet.®

These portable network TAPs are ideal for 10/100M or 10/100/1000M copper network monitoring and troubleshooting. This is a must-have item for any network trouble-shooting toolbag.

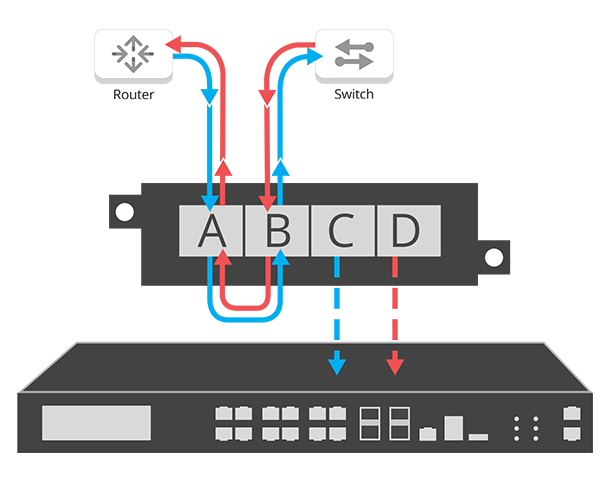

  • Supports tap 'breakout' mode
  • Available in passive or failsafe models
  • Portable, Plug-and-Play design - or - 1U rack mounts holds up to 4 TAPs
  • Easy configuration; switches on back of TAP
  • Supports link failure propagation (LFP)
  • Passes physical errors
  • Link speed synchronization available
  • Supports jumbo frames
  • PoE (Power over Ethernet)
  • Made, tested and certified in the USA
Model No. Network Speed Chassis Size No. of TAPs Passive Serial Port Power Cable Connector
RMP-1U 1U Rack Mount Plate 1U Rack Mount Kit - Hold up to 4 portable TAPs
PT100 10/100M Portable 1 Yes No AC Copper Copper-RJ45
P1GCCB 10/100/1000M (1G)  Portable 1 Failsafe Design No AC Copper Copper-RJ45


Model No. Network Speed Media Modes
Network Monitor Breakout Aggregation Regeneration Bypass Packet Injection Support
RMP-1U 1U Rack Mount Plate 1U Rack Mount Kit - Hold up to 4 Portable TAPs
P1GCCAS 10/100/1000M 2 Copper-RJ45 2 Copper-RJ45 Yes Yes Yes No No
P1GCCBP 100/1000M 2 Copper-RJ45 2 Copper-RJ45 Yes Yes Yes Yes Yes
P1GCCBPPOE+ 100/1000M 2 Copper-RJ45 2 Copper-RJ45 Yes Yes Yes Yes Yes


Model No. Network Speed Media Modes
Network Monitor Breakout Aggregation Regeneration Bypass Packet Injection Support

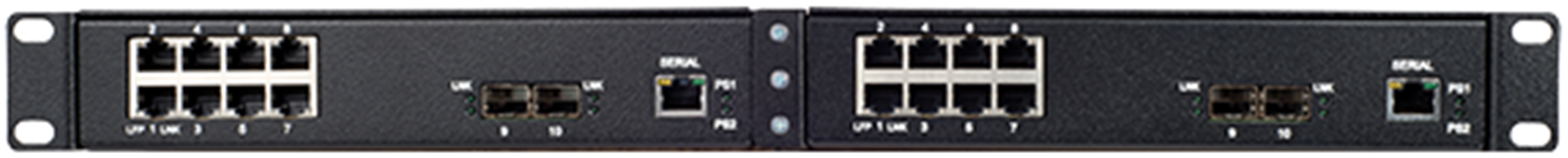

INT1G10CSA Rack Mount Kit 1U Rack Mount Kit included - Holds 2 INT1G10CSA
INT1G10CSA 1G 4 Copper-RJ45 2 SFP Yes Yes Yes No No

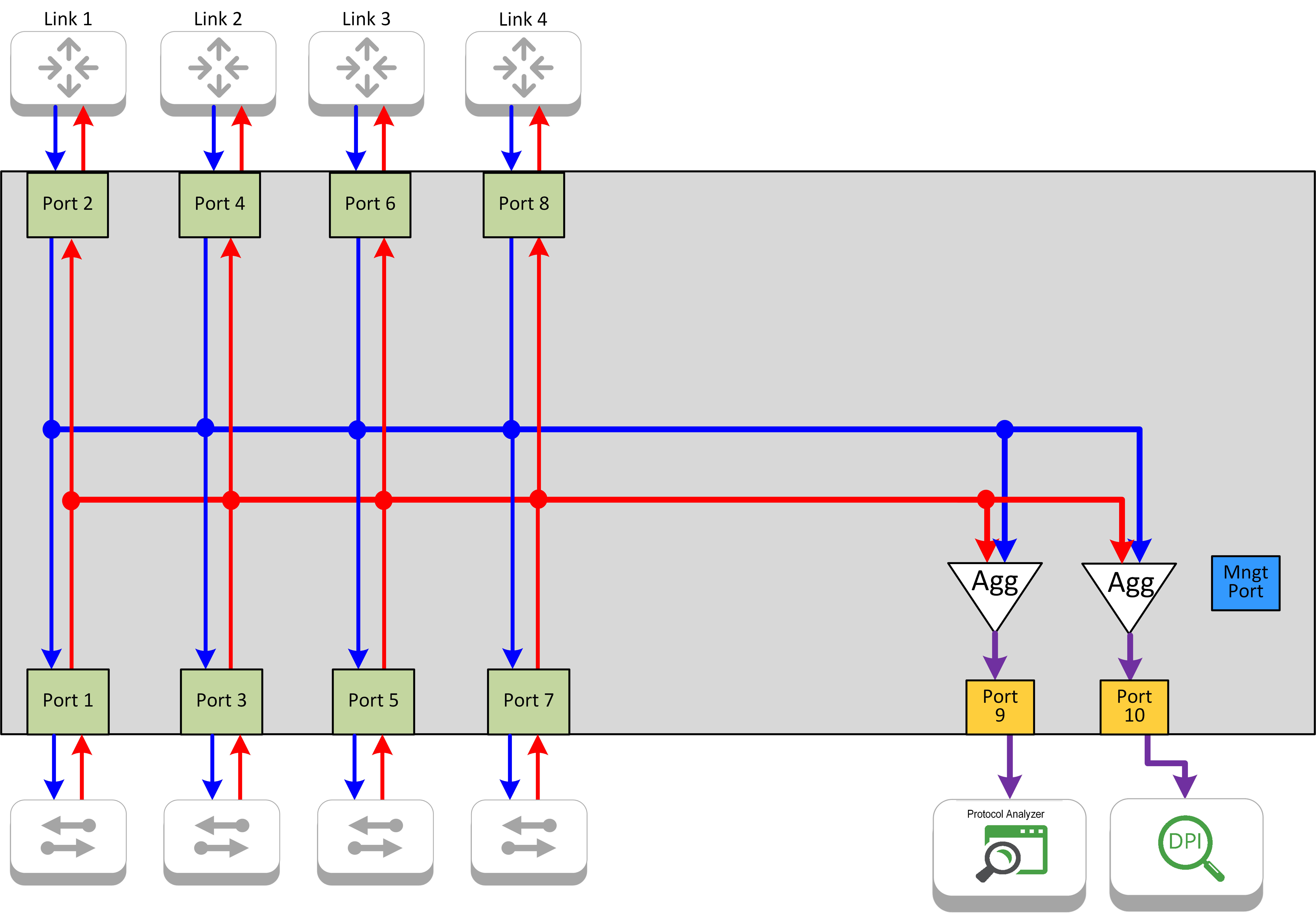

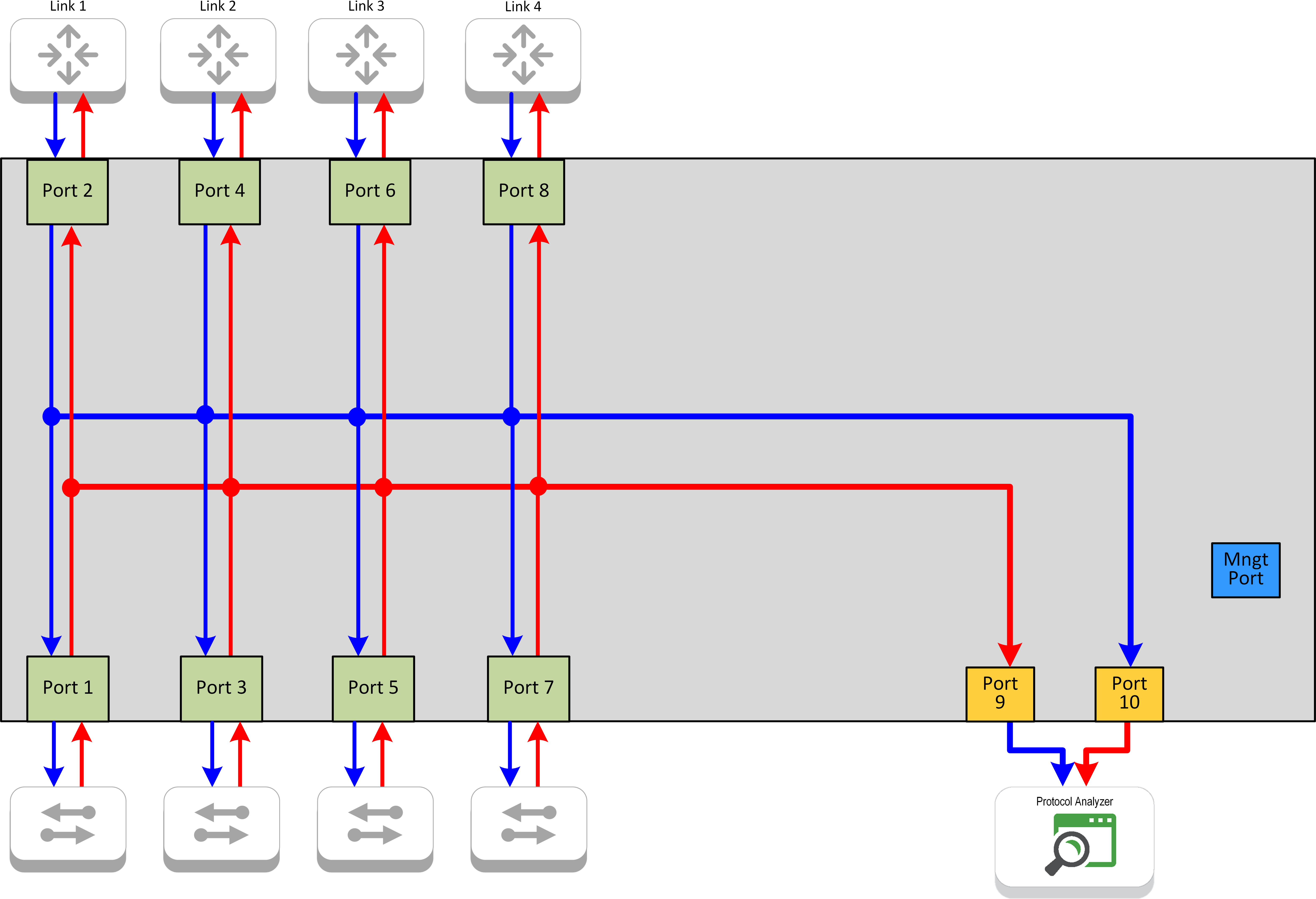

Aggregation Flow Breakout Flow
Aggregation Flow Breakout Flow
INT1G10CSA Aggregation Flow INT1G10CSA Breakout Flow
INT1G10CSA Aggregation Flow INT1G10CSA Breakout Flow
