Data Diode SPAN TAP
Secure SPAN Links with Hardware-enforced Perimeter Protection
Maintain network integrity for industrial network monitoring without exposing additional risk from remote attacks, DDoS attacks, malware, ransomware from external networks.
Data Diodes SPAN TAPs provide network traffic for out-of-band monitoring, specifically designed not to send traffic back onto the network. These purpose-built network hardware devices enforce one-way data flow for SPAN links with physical hardware separation, guaranteeing protection of critical digital systems, such as industrial control systems (ICS), from inbound cyber threats.
Data diodes can be found most commonly in high security environments, such as federal defense and critical infrastructure, where they serve as connections between two or more networks of differing security classifications. This technology can be found at the industrial control level for such facilities as nuclear power plants, power generation and safety critical systems like railway networks.






Key Features
-
Maintain network integrity for industrial network monitoring without exposing additional risk
-
Protect the source of data streams like switch SPAN ports between network segments that have different security requirements
-
Supports regeneration / SPAN mode
Additional
- Physical hardware separation guarantees unidirectional traffic between network segments
- Supports 10/100/1000M (1G)
- 100% secure and invisible; no IP address, no MAC address; cannot be hacked
- Plug & Play easy installation, no configuration
- DIN Rail mount and Industrial accessories available
- Made, tested and supported in the USA
Data Diode SPAN TAP
Model # | Network Speed | Network | Monitor | Breakout | Aggregation | Regeneration/SPAN |
P1GCCAS-Custom | 10/100/1000M | 2 Copper-RJ45 | 2 Copper-RJ45 | No | No | Yes |
CTAP-P1GCCREG |
10/100/1000M | 2 Copper-RJ45 | 2 Copper-RJ45 | No | No | Yes |

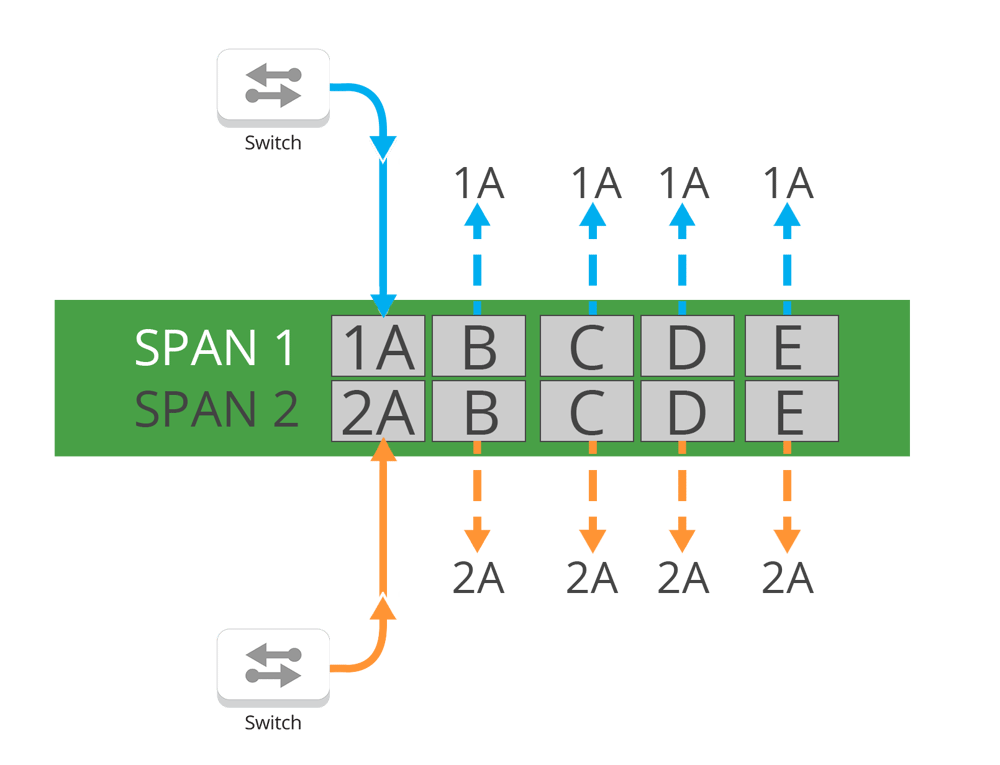

RegenTAP: Dual Breakout SPAN 1x4 Data Diode
Model # | Network Speed | Ports | Power |
INT10G10SP1 | 1/10G | (10) SFP+ | 120W |
AggregatorTAP: SPAN Data Diodes
Model # | Network Speed | Network | Monitor | Breakout | Aggregation | Regeneration/SPAN |
INT1G10CSASP | 10/100/1000M | 8 Copper-RJ45 | 2 SFP | No | Yes | Yes |
INT1G10CSASPDC | 10/100/1000M | 8 Copper-RJ45 | 2 SFP | No | Yes | Yes |
P1GCSSP |
10/100/1000M |
2 Copper-RJ45 | 2 SFP | No | Yes | Yes |
RegenTAP: 1x5
Model # | Network Speed | Network | Split Ratio | Failsafe | Monitor | power |
INT10G12MSB5-5 | 10G | SR MMF | 50/50 | Passive | SFP+ | 120W |
INT10G12MSB5-6 | 10G | SR MMF | 60/40 | Passive | SFP+ | 120W |
INT10G12MSB5-7 | 10G | SR MMF | 70/30 | Passive | SFP+ | 120W |
INT10G12SSB5-5 | 10G | LR SMF | 50/50 | Passive | SFP+ | 120W |
INT10G12SSB5-6 | 10G | LR SMF | 60/40 | Passive | SFP+ | 120W |
INT10G12SSB5-7 | 10G | LR SMF | 70/30 | Passive | SFP+ | 120W |
Product Catalog:
Data Diode TAPs
Product Catalog:
P1GCSSP Datasheet
CTAP-P1GCCREG & P1GCCAS Custom Datasheet
P1GMSASP & P1GSSASP Datasheet
Whitepaper:
Protect OT Network Perimeter Integrity
Support:
Installation guides
![]() |

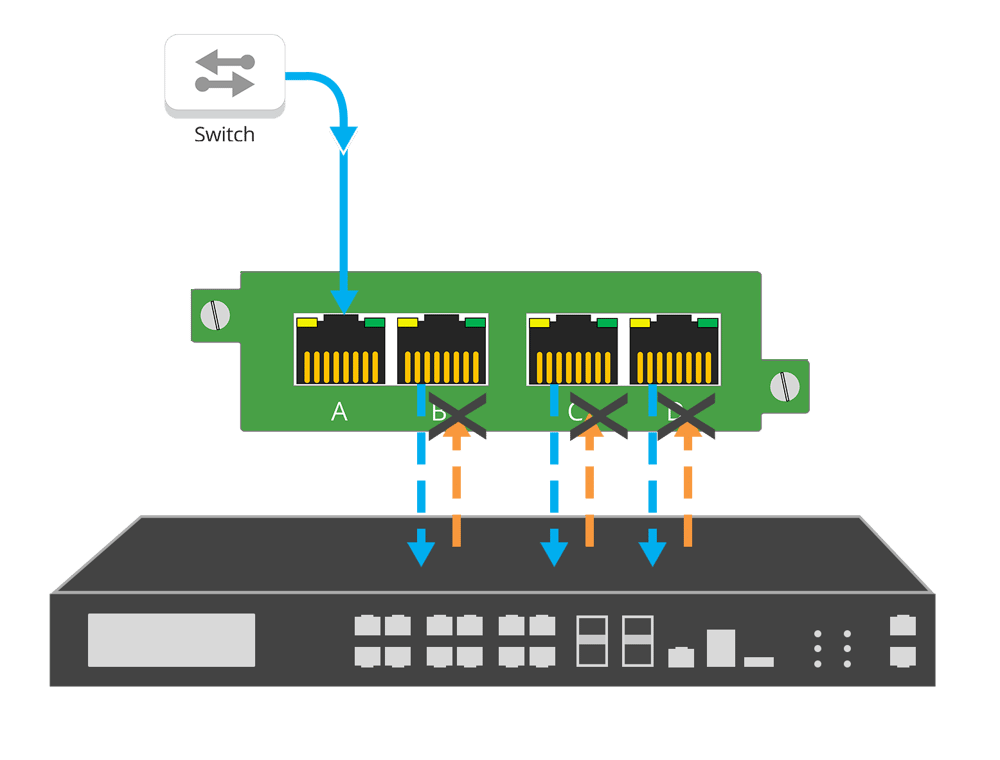

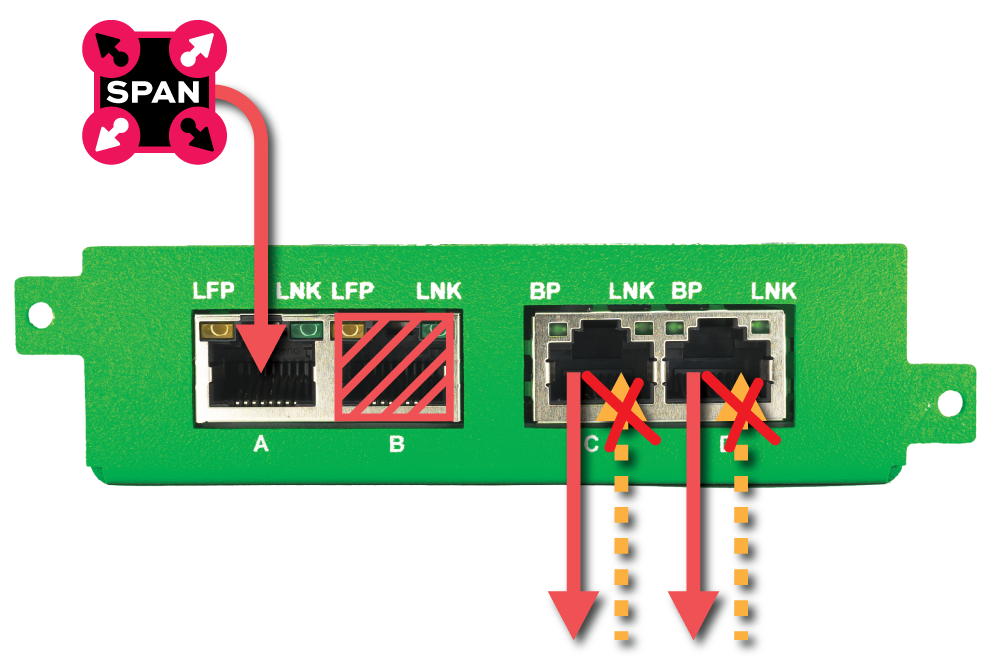

P1GCCAS-Custom (1 SPAN in, 2 SPAN out) |
![]() |

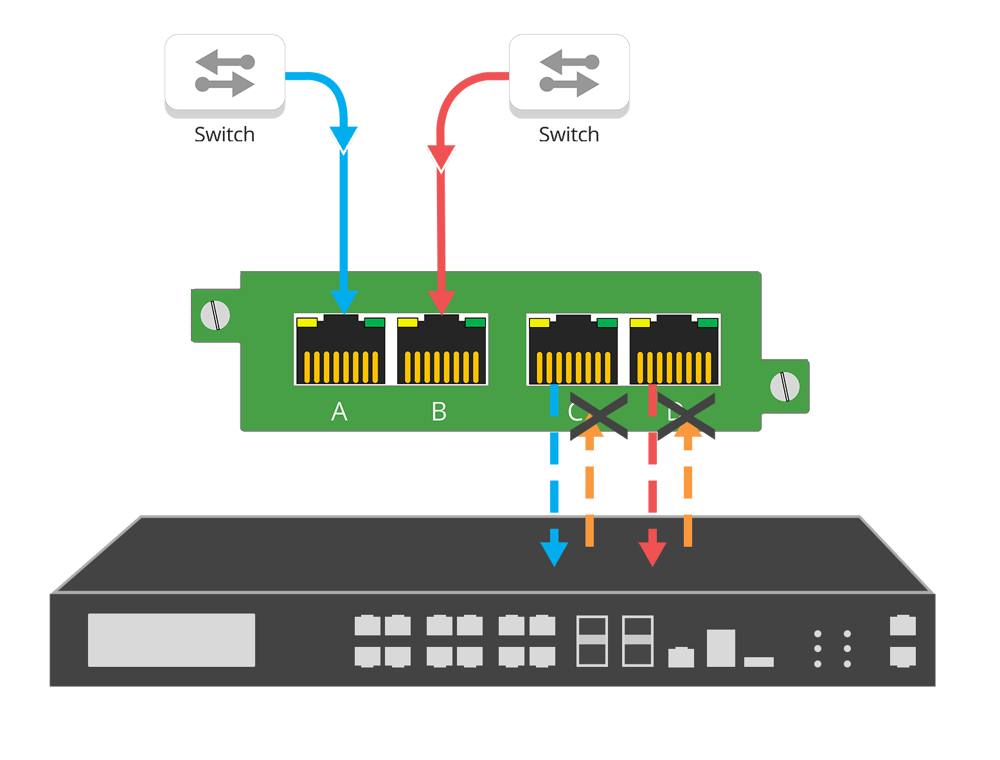

CTAP-P1GCREG (1-to-1 | 2 SPAN in, 2 SPAN out) |
![]() |
Unidirectional Data Diode SPAN TAP regeneration for protecting SPAN Links |
Unidirectional Data Diode SPAN TAP 8:1 aggregation for protecting SPAN Links |
![]() |
Unidirectional Data Diode SPAN TAP 1:4 regeneration for protecting SPAN Links |
