Garland Technology's Hardware is easy to install. We have a wide variety of 1U and 2U racking options that include rack mount plates, rack mount shelves, compatible brackets, and even a DIN Rail mounting option for Portable devices.

Options for 1U & 2U Racking and DIN Rail Mounting

Part # Type Holds Rack space
M1G1ACE / M1G1DCE 1U Modular chassis (AC / DC) Up to 4 TAP modules 1U
M1G2ACE / M1G2DCE 2U Modular chassis (AC / DC) Up to 12 TAP modules 2U
FMC-1U 1U Passive fiber modular chassis 16 to 24 fiber TAP modules, by configuration 1U
RMP-1U 1U Rack mount plate Up to 4 portable TAPs or 4 fiber TAP modules 1U
RMS-1U 1U Rack mount shelf Up to 4 portable TAPs 1U
RMS-1U-V2 1U Rack mount shelf Up to 4 1G/10G TAPs 1U
RMS-1U-V 1U Rack mount shelf Up to 3 INT1G10SSASP 1U
Bracket-10 Half-rack mount bracket INT1G10CSA + 2 portable TAPs 1U
Bracket-11 Half-rack mount plate 2 portable TAPs or data diodes 1U (half-rack)
DIN_MOUNT_V2 DIN rail mount One portable TAP None (35mm DIN rail)

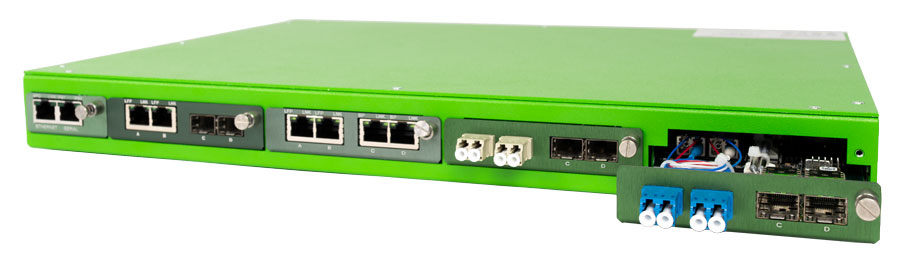

M1G1ACE / M1G1DCE

Modular Network TAP Platform: 1U Chassis

Garland Technology M1G1ACE 1U modular network TAP chassis with four TAP module slots
  • •Holds up to (4) TAP or Data Diode modules in any combination of speed, media type, or mode in a 1U space.​
  • •Modules are easy to install – slide a module into an open slot until it clicks.​
  • •Dimensions: 17.40" W x 1.75" H x 13.45" D. Weight: 8.0 lbs.

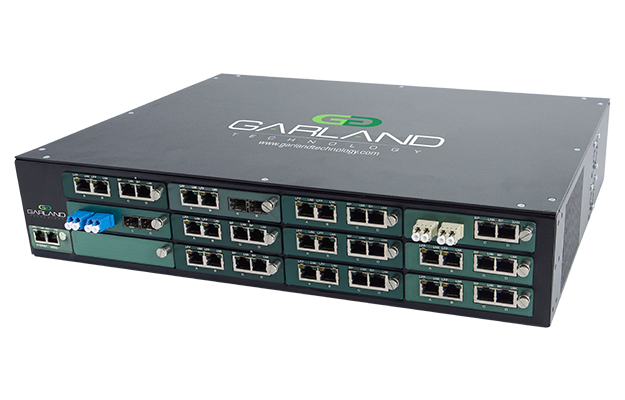

M1G2ACE / M1G2DCE

Modular Network TAP Platform: 2U Chassis

Garland Technology 2U modular network TAP chassis populated with twelve TAP modules
  • •Holds up to (12) TAP or Data Diode modules in any combination of speed, media type, or mode in a 2U space.​
  • •Modules are easy to install – slide a module into an open slot until it clicks.​
  • •Dimensions: 17.40" W x 3.47" H x 13.45" D. Weight: 9.0 lbs.

Chassis Controller & Blanking Plate for the for M1G1xxE and M1G2xxE Chassis

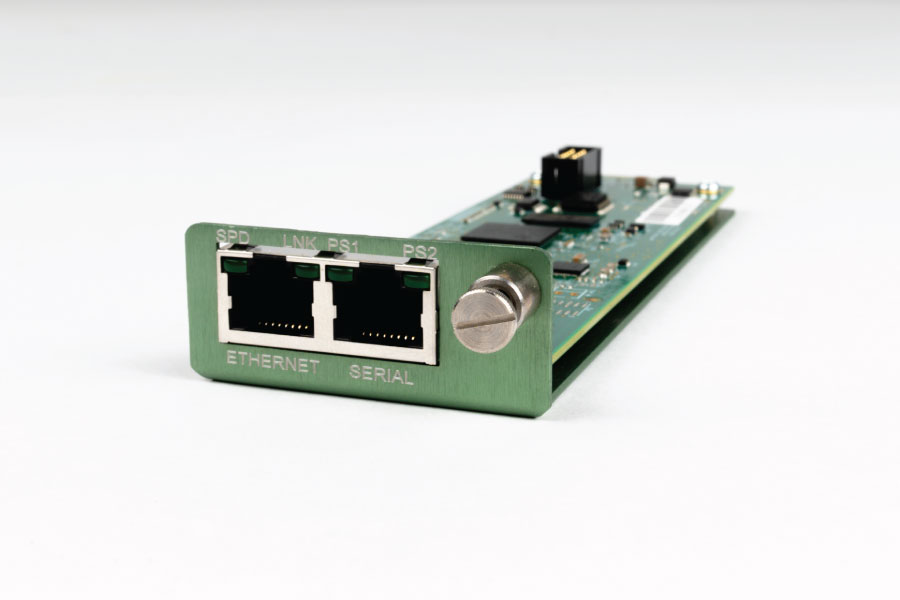

M1GC

M1GC-control-card

There is a RJ-45 Serial Management port and an Ethernet RJ-45 Management port that allows access to the Command Line Interface (CLI). This enables the chassis to be connected to the network for remote management via a web browser once the network configuration is set-up

M1GL

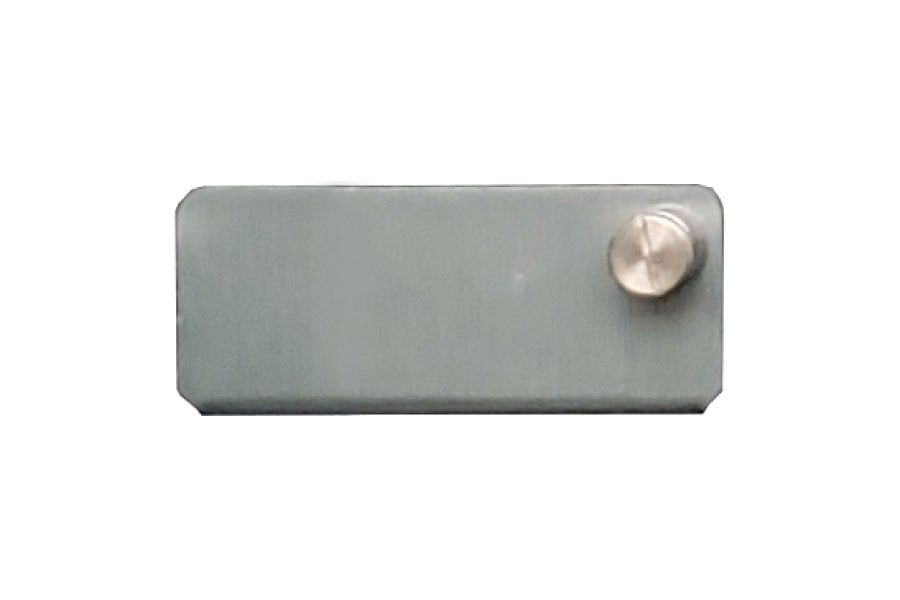

M1GL-Blank-Plate

Tray with Power LED's for M1G1xxE and M1G2xxE Chassis. One is required if you do not purchase a management card M1GC (M1GL is a blanking plate with (2) LED's showing if power supplies are ON or OFF.)

FMC-1U

SelectTAP™ Passive Fiber Modular Chassis

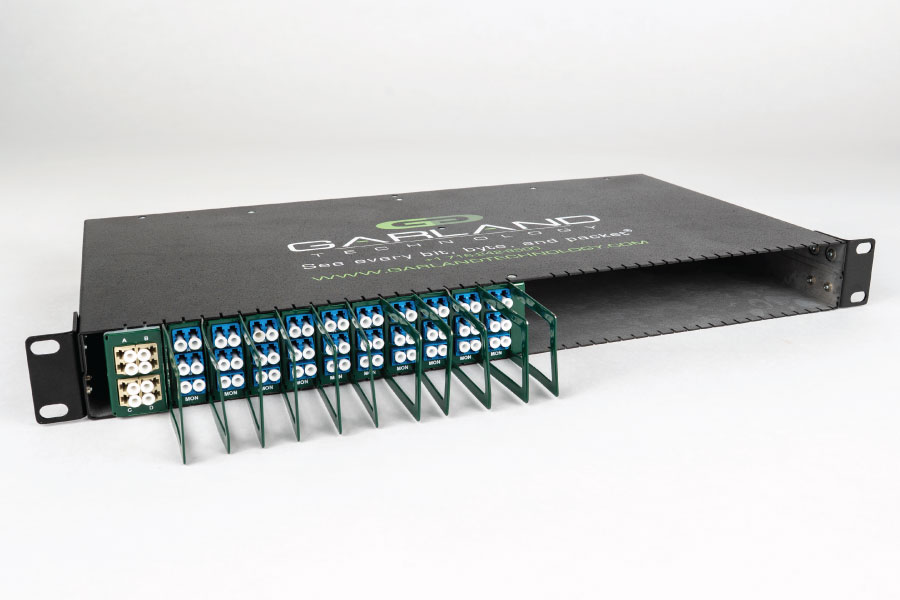

Garland Technology FMC-1U passive fiber modular chassis with LC fiber TAP modules
  • •Accommodates 16 to 24 TAP modules depending on connector type: 24 LC modules, 16 MPO/MTP® modules, or 16 BiDi LC modules.
  • •Supports network speeds of 10M/100M/1G/10G/25G/40G/100G/400G/800G.​
  • •Dimensions: 17.40" W x 1.75" H x 13.45" D.​

1U Racking Options for 1G Portable TAPs and Data Diodes

RMP-1U

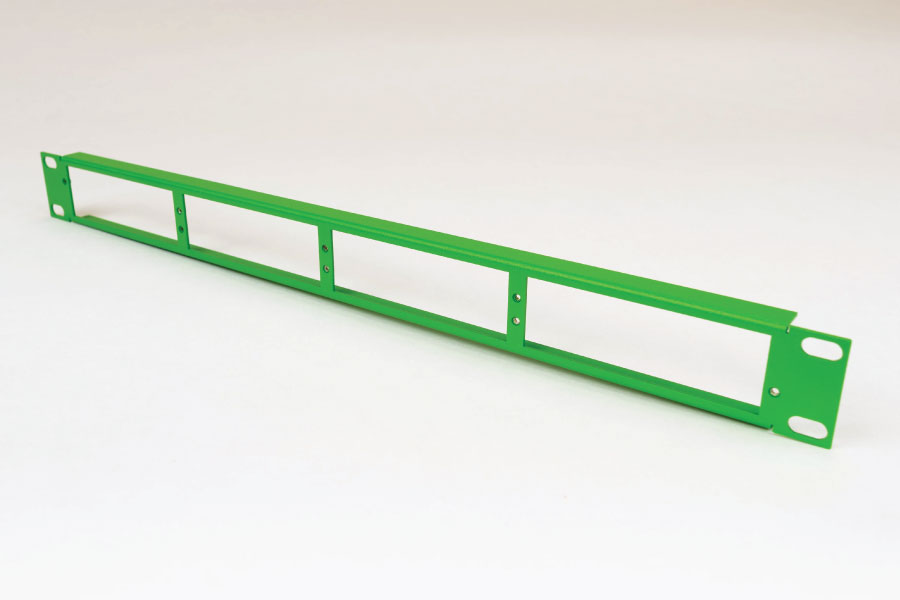

Garland Technology RMP-1U 1U rack mount plate with four portable TAP slots
  • •1U Rack Mount Plate that accepts (4) Portable TAPs and Data Diodes.

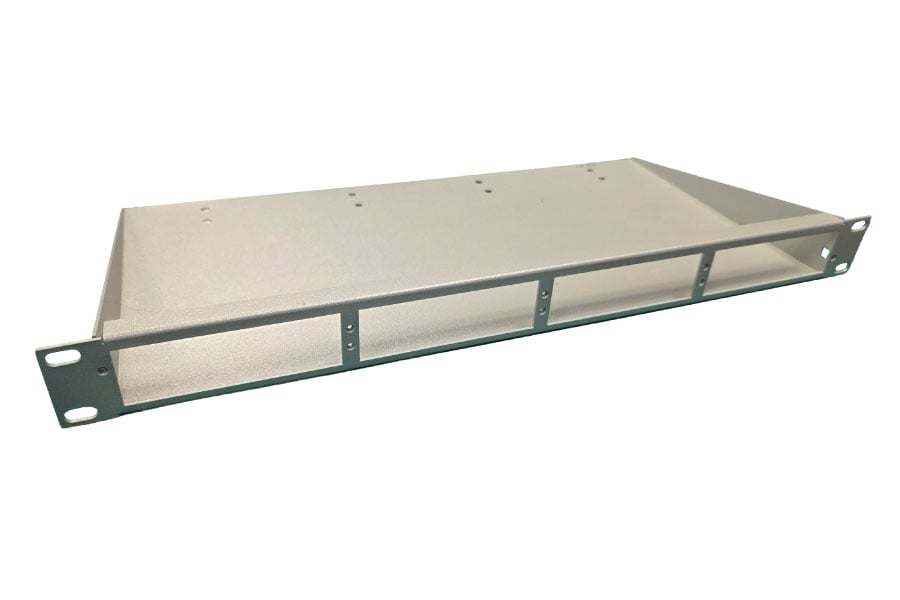

RMS-1U

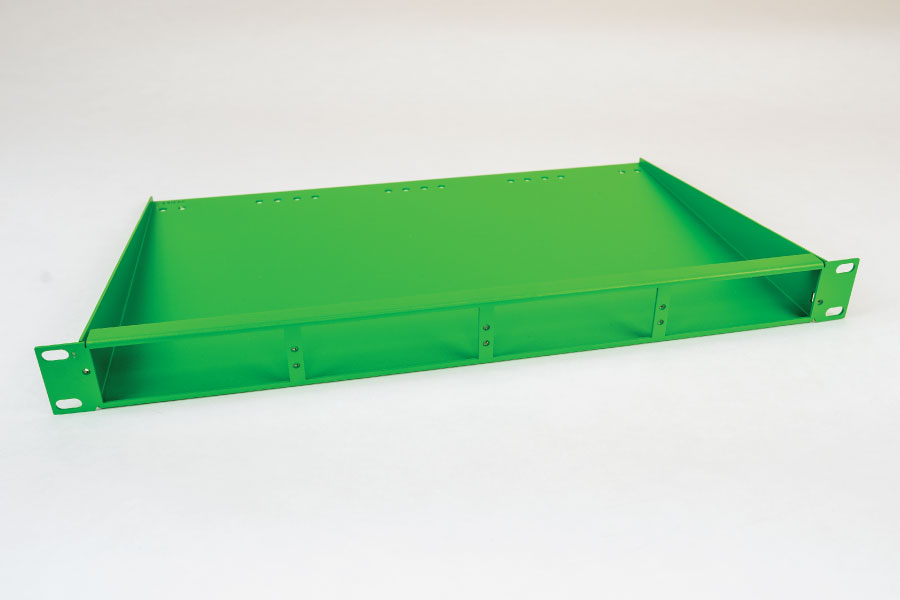

Garland Technology RMS-1U 1U tray mount plate with four portable TAP slots
  • •1U Rack Mount Shelf that accepts (4) Portable TAPs and Data Diodes.

RMS-1U-V2

1U Rack Mount Shelf for 1G and 10G Portable TAPs

Garland Technology RMP-1U 1U rack mount plate with four portable TAP slots
  • •Choose RMS-1U-V2 when you would like to place your 10G and 1G portable TAPs and Data Diodes in the same 1U space.

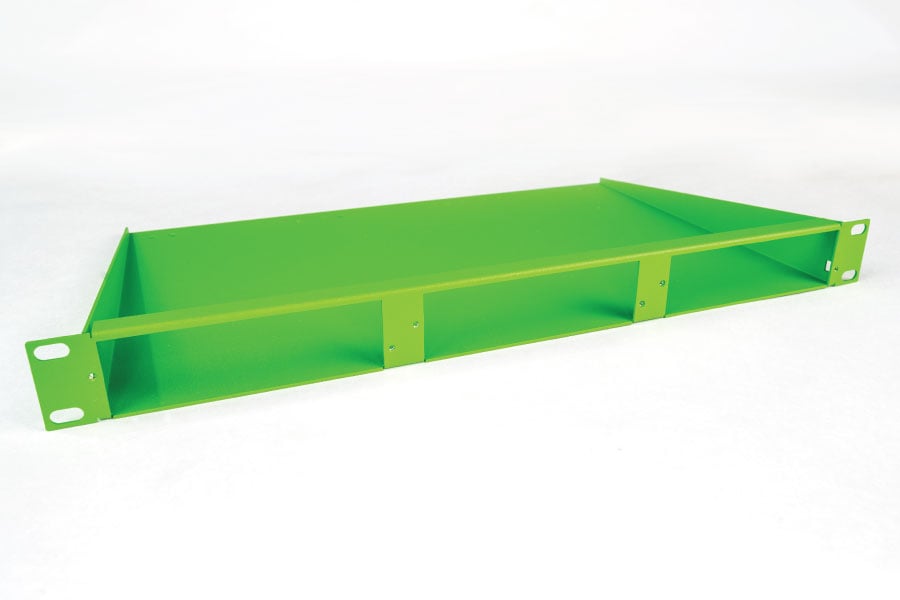

RMS-1U-V3

1U Rack Mount Shelf for INT1G10SSASP

Garland Technology RMP-1U 1U rack mount plate with four portable TAP slots
  • •RMS-1U-V3 is compatible exclusively with Garland Technology's INT1G10SSASP.

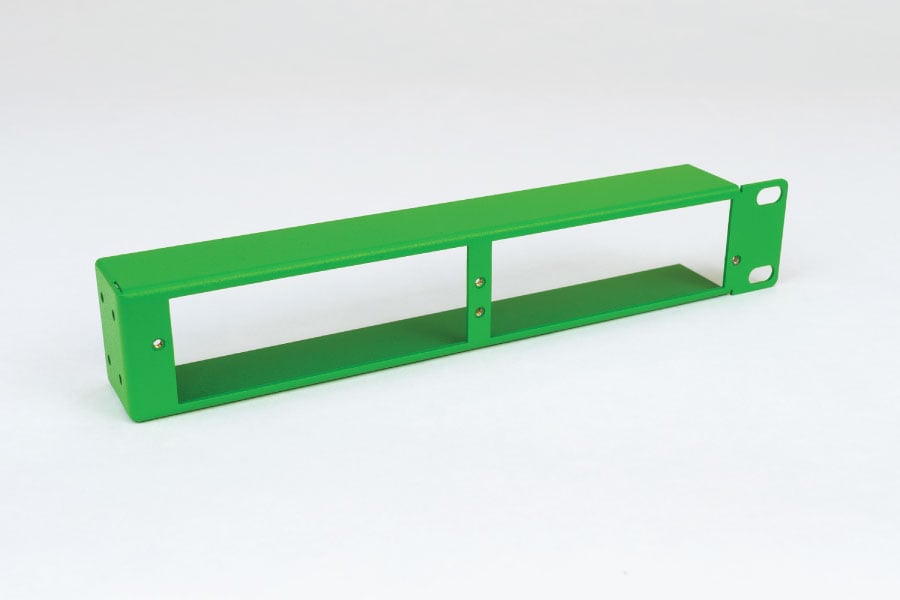

Bracket-10

Accessory Bracket for High Density Aggregators

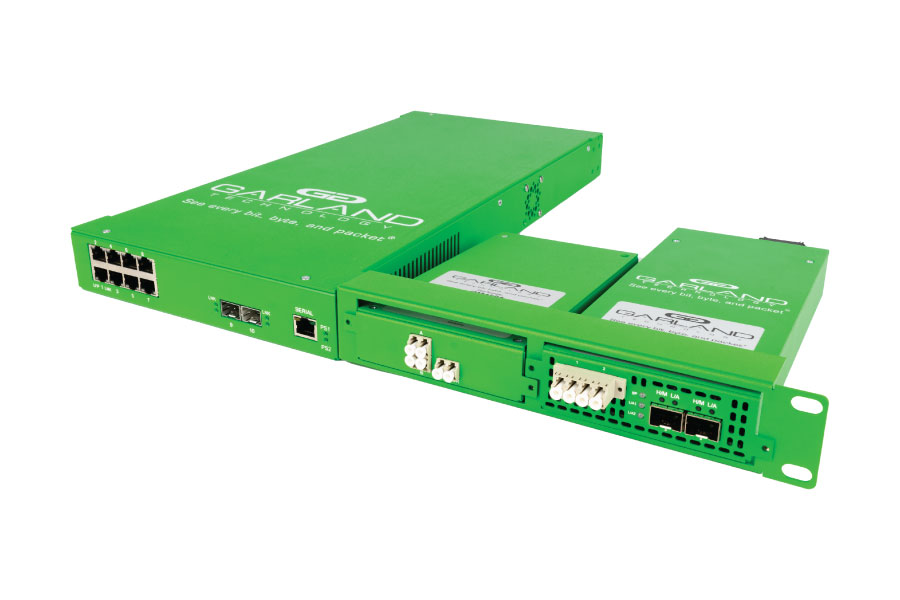

Garland Technology Bracket-10 1U rack mount bracket for the INT1G10CSA
Garland Technology Bracket-10 1U rack mount bracket for the INT1G10CSA
  • •Bracket that allows you to add two (2) Portable 1G TAPs and Data Diodes next to the following part numbers in the same 1U space: INT1G10CSA, INT1G10CSA-DC, INT1G10CSASP, INT1G10CSASPDC.

Bracket-11

Accessory Bracket for 1U Half-Rack Hardware

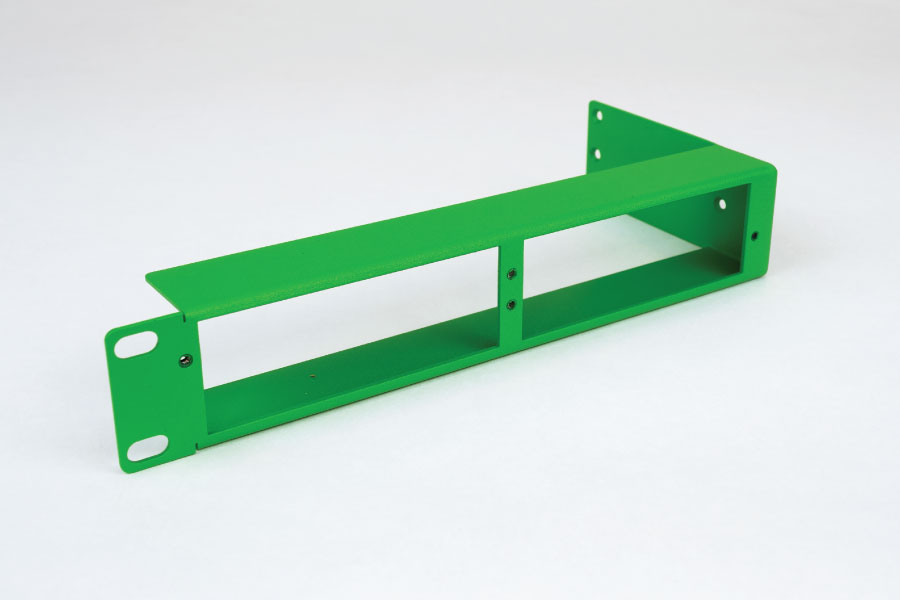

Garland Technology Bracket-11 half-rack mount plate with two portable TAP slots
  • •Attaches to any Garland Technology 1U Half-Rack 10G product giving you two (2) slots for additional Portable TAPs and Data Diodes in the same 1U space.
  • •Example build: mount Bracket-11 to the left side of an INT10G12MSFE-5 TAP/packet broker hybrid, add an OM4502 portable, and tap two more fiber links, then aggregate all three TAP links to one out-of-band monitoring tool.

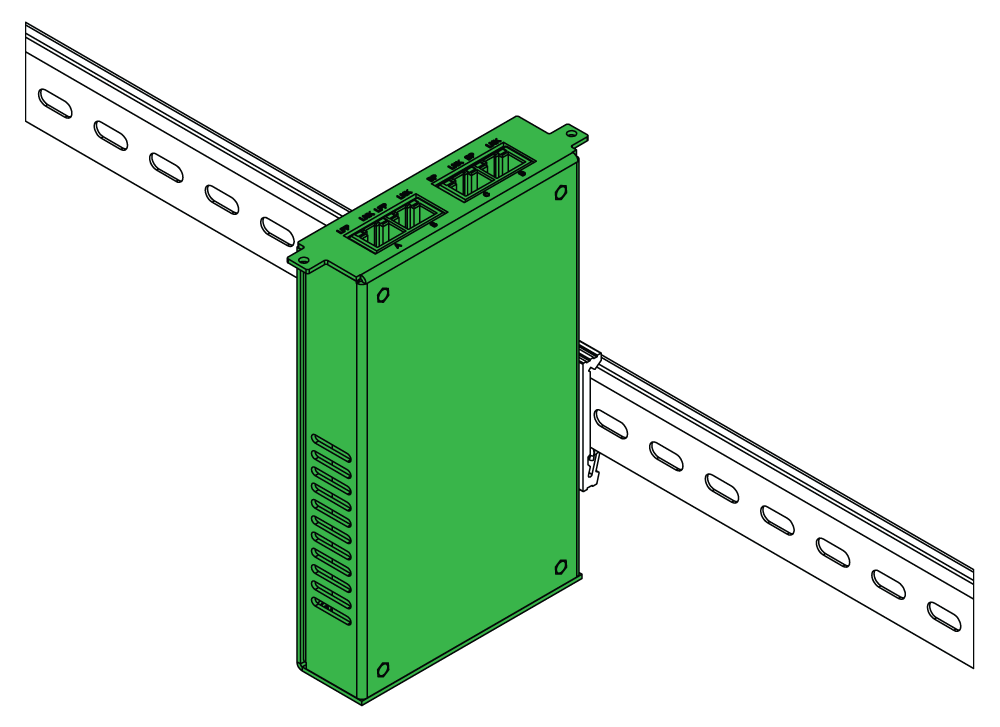

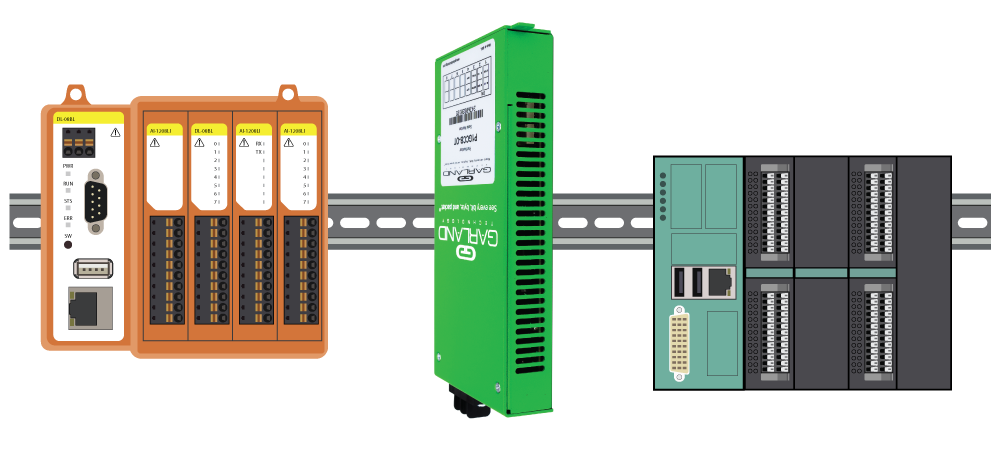

DIN Rail Mounts

  • •All portable 10M/100M/1G TAPs and Hardware Data Diodes can be DIN Rail mounted.​
  • •DIN_MOUNT_V2 is the part # for all Portable TAPs and Data Diodes. EXCEPT P100CCA and PT100, which use part number DIN_MOUNT.
  • •DIN mounts fits standard 35mm DIN rails.​
↓ CAN'T FIND YOUR PART NUMBER? ↓

Tell us what you're mounting. We'll confirm the fit before you order.

Send your model numbers and a network design engineer will confirm the mount, the density, and what ships in the box.
