EdgeSafe: 1G Bypass Modular Network TAP

1G | Inline Bypass | Failsafe | Ensure reliability for multiple inline tools

A Bypass TAP, also referred to as a 'bypass switch', provides the ability to manage the availability and reliability of your inline tool (IPS, WAF, firewalls) any time without network downtime or impacting business availability for maintenance or upgrades. A critical component to IT security strategies.

Garland’s modular EdgeSafeTM Bypass TAPs, are purpose-built to provide the ultimate failsafe device that eliminates single points of failure, reducing network downtime, without compromising the network.

Bypass TAP "Inline lifecycle management" allows you to sandbox new tool deployments, manage updates, install patches, perform maintenance or troubleshooting and validate out-of-band, without impacting the network.

EdgeSafe: 1G Bypass Modular Network TAP EdgeSafe: 1G Bypass Modular Network TAP EdgeSafe: 1G Bypass Modular Network TAP EdgeSafe: 1G Bypass Modular Network TAP EdgeSafe: 1G Bypass Modular Network TAP
EdgeSafe: 1G Bypass Modular Network TAP
EdgeSafe: 1G Bypass Modular Network TAP
EdgeSafe: 1G Bypass Modular Network TAP
EdgeSafe: 1G Bypass Modular Network TAP
EdgeSafe: 1G Bypass Modular Network TAP

Key Features

  • Inline Bypass — sandbox, deploy, troubleshoot and replace active inline tools without taking the network link down
  • Network Failsafe - Garland failsafe technology recognizes power outages and automatically closes the relay circuitry in less than eight milliseconds, reconnecting the two network devices connected to ports A and B
  • Heartbeat Health Check - Configurable heartbeat packets monitor the health of the inline appliance. If the tools availability changes, the Bypass TAP will automatically ‘bypass’ the tool, or failover to a redundant solution, keeping your network up while you resolve the issue

Additional

  • 1U holds up to 4 bypass TAPs; 2U holds up to 12 bypass TAPs
  • Media Conversion: Fiber (SX, LX, ZX) to copper (TX) - or copper (TX) to fiber (SX, LX, ZX). Short range fiber (SX) to long range fiber (LX or ZX)
  • Supports jumbo frames and passes physical errors
  • Supports link failure propagation (LFP)
  • 100% secure and invisible; no IP address, no MAC address; cannot be hacked
  • Simple easy to use GUI management
  • Dual redundant power supplies
  • Made, tested and supported in the USA
Chassis Options
Model No. Chassis/TAPs* Power Supplies Dimensions (WxHxD)
M1G1ACE 1U; up to 4 TAPs Dual Internal AC 17.40” x 1.75” x 13.45”
(441.96mm x 44.45mm x 341.63mm)
M1G1DCE 1U; up to 4 TAPs Dual Internal DC
M1G2ACE 2U; up to 12 TAPs Dual Internal AC 17.40” x 3.47” x 13.45”
(441.96mm x 88.14mm x 341.63mm)
M1G2DCE 2U; up to 12 TAPs Dual Internal DC
M1GC* Management card: Ethernet/GUI - and- Serial/CLI for M1GxxE
*Blanking plates are used if management card is not required or if not all TAP modules are populated. Management card and additional GT TAP modules can be added to chassis.
*The 1G - 1U/2U Modular Chassis System with optional CLI or GUI remote management replaces the 1G - 1U/2U Modular Chassis System with Serial or Non-serial port management [Including  M1G1AC, M1G1ACS, M1G2AC, M1G2ACS, M1G1DC, M1G1DCS, M1G2DC, M1G2DCS]. Read the EOL document.


Bypass TAP Options
Model No.  Network Speed  Media Modes Packet Injection Support & Packet Slicing*
Network Monitor  Breakout Aggregation Regeneration
/SPAN
Filtering Bypass
M1GCCBP  10/100/1000M  2 Copper-RJ45  2 Copper-RJ45  Yes  Yes Yes No Yes Yes
M1GCSBP  10/100/1000M  2 Copper-RJ45  2 SFP  Yes Yes Yes No Yes Yes
M1GMCBP 1G  2 SX Multi-mode,
passive LC-Fiber
2 Copper-RJ45 Yes Yes Yes No Yes Yes
M1GMSBP  1G  2 SX Multi-mode,
passive LC-Fiber
2 SFP Yes Yes Yes No Yes Yes
M1GSCBP  1G 2 LX Single-mode,
passive LC-Fiber
2 Copper-RJ45  Yes Yes Yes No Yes Yes
M1GSSBP  1G 2 LX Single-mode,
passive LC-Fiber
2 SFP Yes Yes Yes No Yes Yes


1U and 2U Chassis also Accommodates Copper Breakout, Aggregation and Filtering Modular TAPs

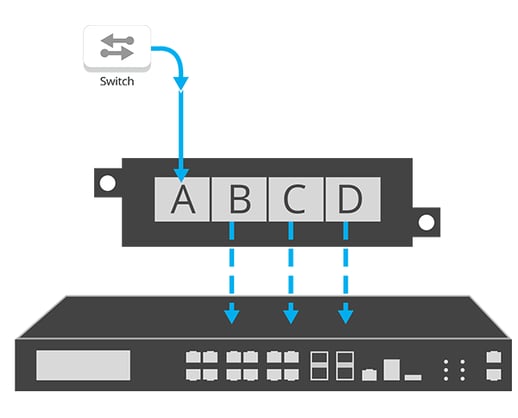

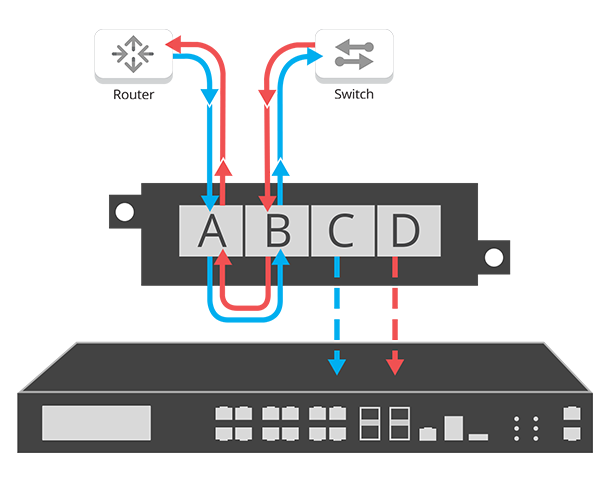

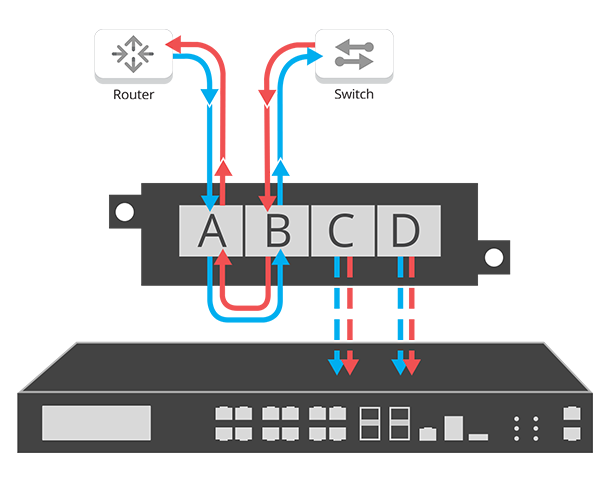

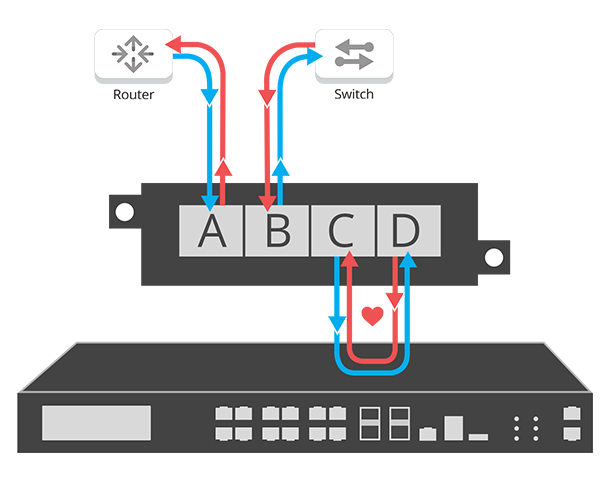

Tap 'breakout' mode Aggregation mode Regeneration/SPAN mode Bypass mode

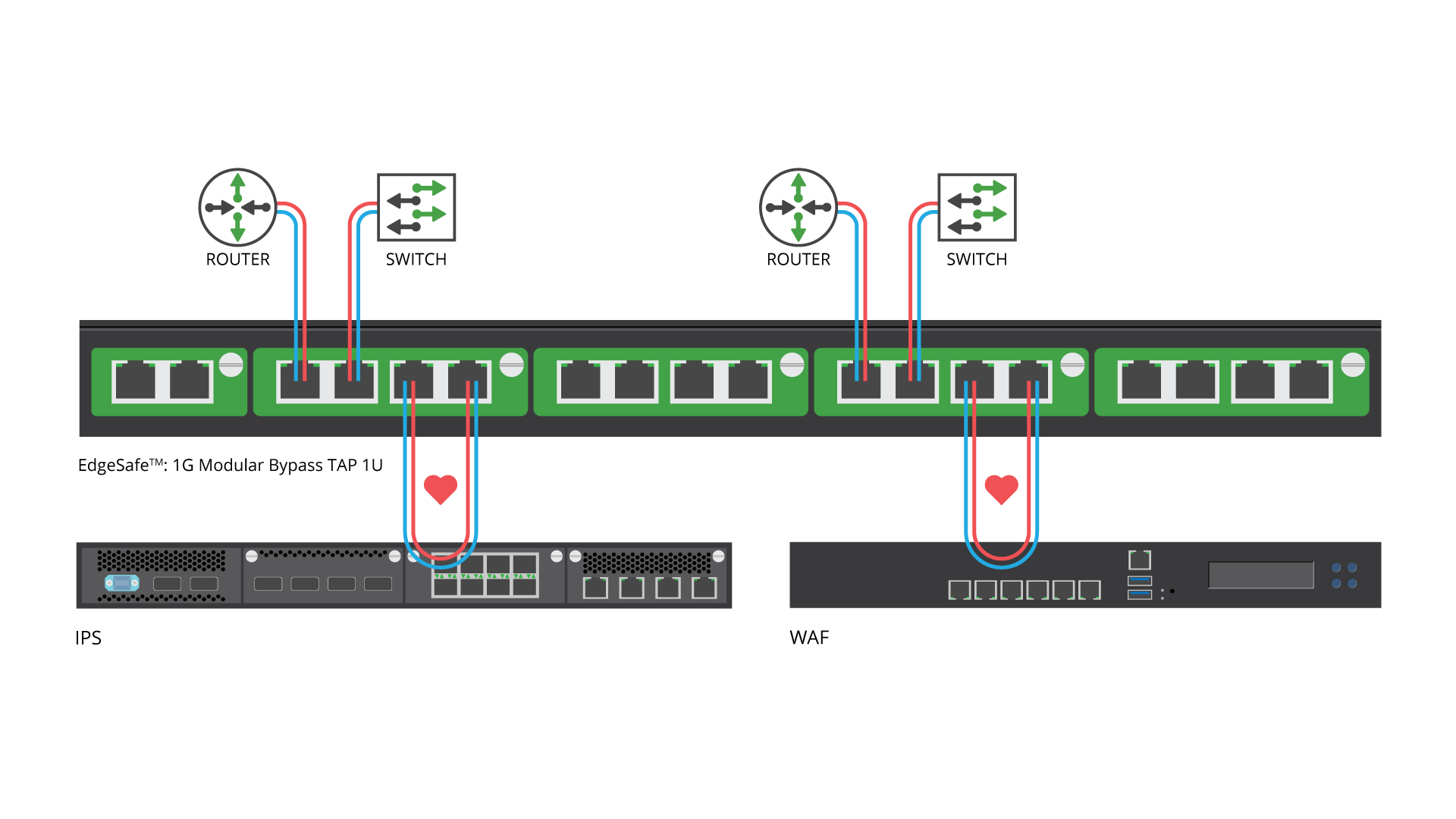

EdgeSafe-1G-Bypass-Modular-Network-TAP-1UEdgeSafe: 1G 1U Bypass Modular Network TAP managing the availability for up to 4 single inline tools.

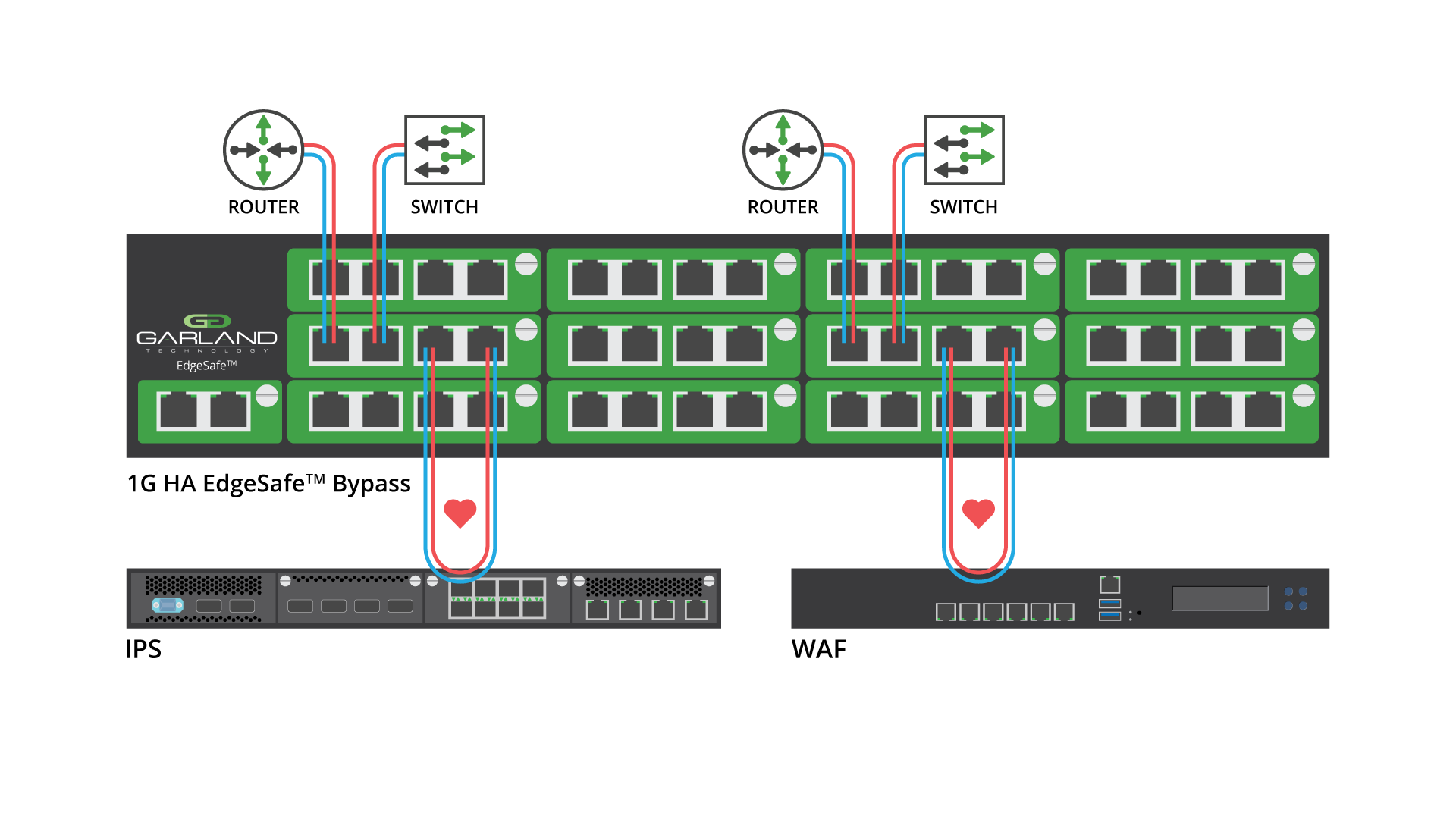

EdgeSafe-1G-Bypass-Modular-Network-TAP-2U
EdgeSafe: 1G 2U Bypass Modular Network TAP managing the availability for up to 12 single inline tools.

Modes-Bypass1



Modes-Breakout1



Modes-Failsafe1



Inline Bypass Out-of-Band Tap ‘Breakout’ Failsafe
