RegenTAP: Dual Breakout

10G | 10 or 12 Ports | 2 TAPs in 1 | Provide Multiple Copies of Data
  • Regeneration TAP
  • Regeneration TAP
  • Regeneration TAP
  • Regeneration TAP

Request a Quote

Network test access points (TAPs) are hardware tools that allow you to access and monitor your network. TAPs are purpose-built hardware devices that let you see every bit, byte and packet.®

Regeneration or regenerator TAPs are used to capture 100% full duplex traffic that can then be sent to multiple monitoring appliances to analyze your network.

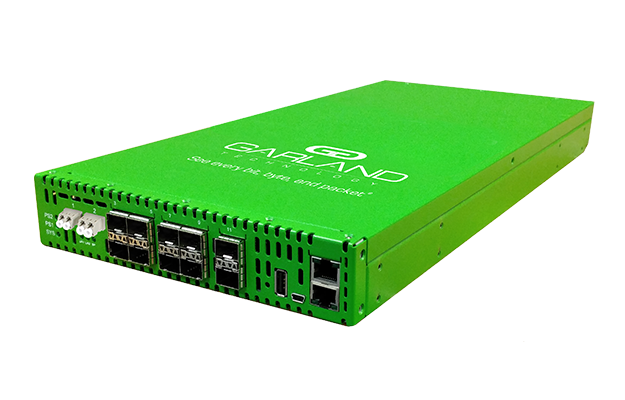

The RegenTAP: Dual Breakout is a multifaceted appliance that provides multiple complete copies of data to monitoring and security devices in your network. The Dual Breakout houses two TAPs in one appliance, while also providing multiple tap ‘breakout’ copies of data, this product also provides aggregation copies for additional applications. Ideal for direct connect, SFP, QSFPs, active cable infrastructures.


  • Provide a 100% copy of Tx/Rx traffic from single link and a second aggregation copy or provide multiple tap ‘breakout’ copies.

  • Network Failsafe or passive design

  • OEO design [optical to electrical to optical]

  • Supports jumbo frames

  • Link Failure Propagation (LFP)

  • 100% secure and invisible; no IP address, no MAC address; cannot be hacked

  • Plug and play; no management

  • Dual internal AC power supplies
  • Supports tap ‘breakout,’ aggregation, and regeneration/SPAN mode

  • Made, tested and certified in USA
Dual Breakout Option 1
Model No. Ports Network Speed Ports Power

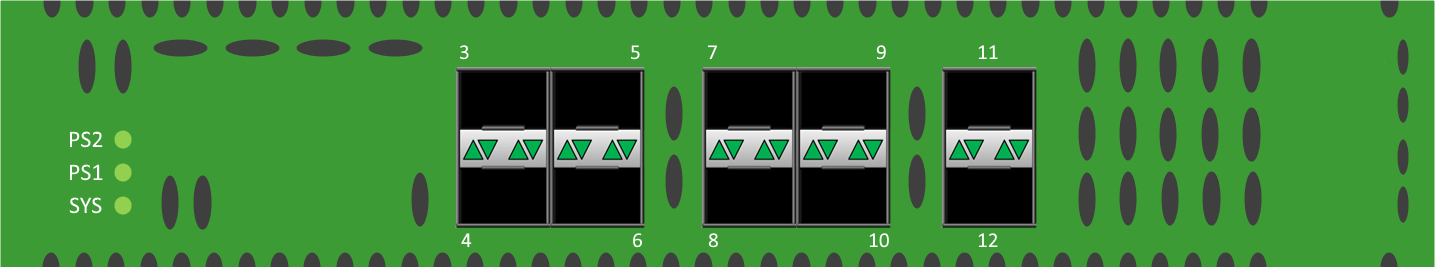

INT10G10V1

EdgeLensFocus-DualBreakout-no-mgmt 10G (10) SFP+ 120W

Dual Breakout Option 2
Model No. Ports Network Speed Split Ratio Network Failsafe Monitor Power

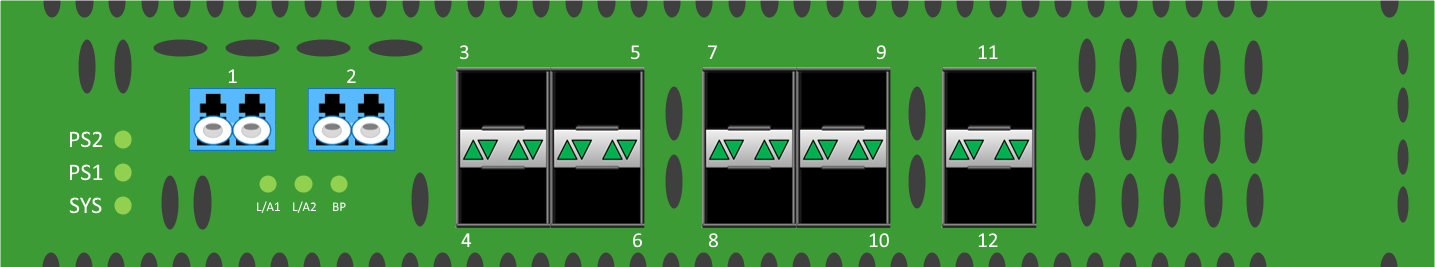

INT10G12SSV2

EdgeLensFocus-SMF-no-mgmt 10G -

LR Single mode Fiber

Failsafe

SFP+ 120W

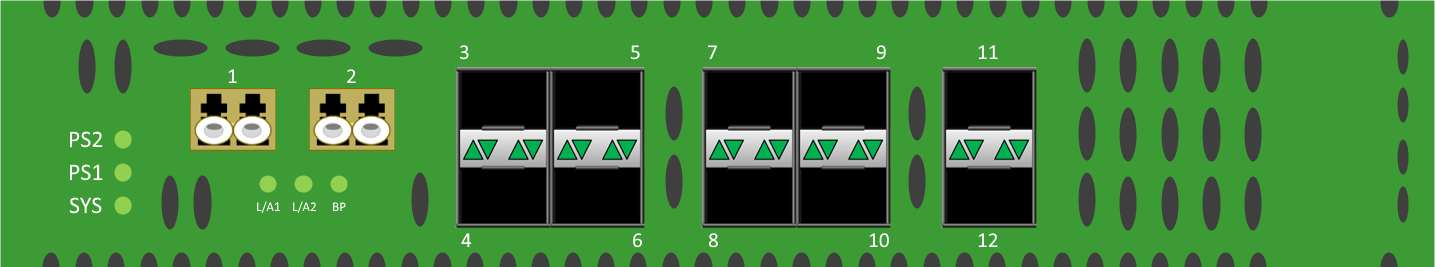

INT10G12MSV2

EdgeLensFocus-MMF-no-mgmt 10G -

SR Multi-mode Fiber

Failsafe

SFP+ 120W

INT10G12SSV2-5

EdgeLensFocus-SMF-no-mgmt 10G

50/50

LR Single mode Fiber

Passive

SFP+ 120W

INT10G12SSV2-6

EdgeLensFocus-SMF-no-mgmt 10G

60/40

LR Single mode Fiber

Passive

SFP+ 120W

INT10G12SSV2-7

EdgeLensFocus-SMF-no-mgmt 10G

70/30

LR Single mode Fiber

Passive

SFP+ 120W

INT10G12MSV2-5

EdgeLensFocus-MMF-no-mgmt 10G

50/50

SR Multi-mode Fiber

Passive

SFP+ 120W

INT10G12MSV2-6

EdgeLensFocus-MMF-no-mgmt 10G

60/40

SR Multi-mode Fiber

Passive

SFP+ 120W

INT10G12MSV2-7

EdgeLensFocus-MMF-no-mgmt 10G

70/30

SR Multi-mode Fiber

Passive

SFP+ 120W

Custom split ratios are available in 80/20 or 90/10, please inquire.


Dual Breakout Option 3

Model No. Ports Network Speed Split Ratio Network Failsafe Monitor Power

INT10G12SSV3

EdgeLensFocus-SMF-no-mgmt 10G -

LR Single mode Fiber

Failsafe

SFP+ 120W

INT10G12MSV3

EdgeLensFocus-MMF-no-mgmt 10G -

SR Multi-mode Fiber

Failsafe

SFP+ 120W

INT10G12SSV3-5

EdgeLensFocus-SMF-no-mgmt 10G

50/50

LR Single mode Fiber

Passive

SFP+ 120W

INT10G12SSV3-6

EdgeLensFocus-SMF-no-mgmt 10G

60/40

LR Single mode Fiber

Passive

SFP+ 120W

INT10G12SSV3-7

EdgeLensFocus-SMF-no-mgmt 10G

70/30

LR Single mode Fiber

Passive

SFP+ 120W

INT10G12MSV3-5

EdgeLensFocus-MMF-no-mgmt 10G

50/50

SR Multi-mode Fiber

Passive

SFP+ 120W

INT10G12MSV3-6

EdgeLensFocus-MMF-no-mgmt 10G

60/40

SR Multi-mode Fiber

Passive

SFP+ 120W

INT10G12MSV3-7

EdgeLensFocus-MMF-no-mgmt 10G

70/30

SR Multi-mode Fiber

Passive

SFP+ 120W

Custom split ratios are available in 80/20 or 90/10, please inquire.

DualBreakout1 DualBreakout2 DualBreakout3



Dual Breakout Option 1

TAP1 - 2 tap ‘breakout’ ports, 1 aggregation port

TAP2 - 2 tap ‘breakout’ ports, 1 aggregation port



Dual Breakout Option 2

TAP1 - 4 tap ‘breakout’ ports

TAP2 - 4 tap ‘breakout’ ports



Dual Breakout Option 3

TAP1 - 4 tap ‘breakout’ ports, 1 aggregation port

TAP2 - 2 tap ‘breakout’ ports, 1 aggregation port
