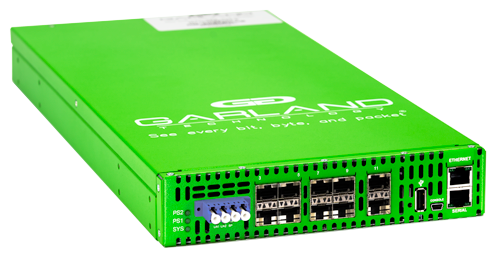

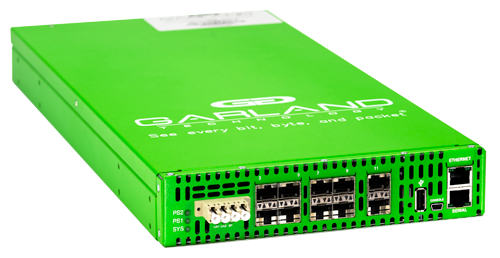

1U Half-Rack Network Traffic Aggregator INT10G12MSFE-SP

Garland Technology’s Network Packet Broker without Passive TAPs is a full featured packet broker with two (2) fixed ports. It supports network speeds of 1G and 10G. The fixed ports utilize internal optics with either Single Mode or Multimode connectors on the faceplate giving you the capability to connect to fiber environments.

Key Features

(2) Fixed Ports – 1G-SX/10G-SR Multimode LC Ports or 1G-LX/10G-LR Single Mode LC Ports available
(10) 1G/10G SFP+ Ports
Supports filtering, aggregation, and load balancing
Aggregate network traffic to a single or multiple tools
Layers 2-4 filtering
Line‑rate filtering: up to 900 ingress / 256 egress rules
Supports jumbo frames
Flow replication and port mirroring
Syslog and NTP support
Simple easy to use GUI management
Hot swappable, dual power supplies
Durable metal chassis

Benefits

Multiple monitoring and security tools receive the same copies of traffic
Packet Broker ports can be input or output ports
Reduce the quantity of monitor links to a number that is more manageable for the out of band network tool or tools
Security and monitoring tools receive 100% of the packets
No dropped packets ensuring reliable visibility
Reduce network complexity
Save money because you do not need to buy extra transceivers
