AF1G52AC
Advanced Feature Network Packet Broker

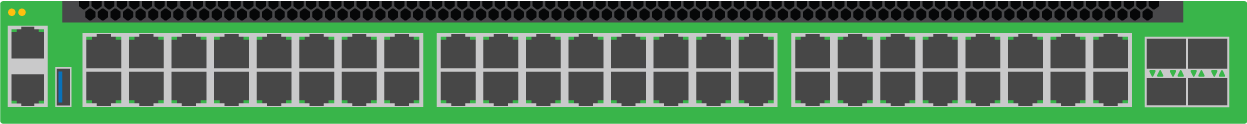

1U NPB with 52 Ports
Garland Technology’s AF1G52AC and AF1G52DC is a purpose-built network packet broker, built to extend the feature set of any product. The system is designed to support NTP time stamping, packet slicing, traffic aggregation, GRE Tunneling, hash-based load balancing, and deduplication. Adding these features to your existing infrastructure, can significantly reduce the processing overhead from security or monitoring tools.
The AF1G52AC is a scalable and flexible, offering a wide range of options to meet your needs. With available speeds from 10M to1 0G, and GRE, L2GRE, ERSPAN, VxLAN Tunneling all included with no additional per-port license fees, you have the ability to deploy what features you need, when you need it.
We believe that securing and monitoring your network is the ultimate goal. Network packet brokers are critical to accomplishing that goal providing management of network traffic from multiple links to optimize the performance of your network monitoring and security tools.

Key Features
- Ports support connection speeds of 1G, 10G, 25G, 40G, and 100G
- (48) 10/100/1000 Copper and (4) 1/10G SFP+ Ports
- Remove unnecessary data to optimize tool performance and reduce processing overhead
- Modify packets for specific monitoring requirements and compliance needs
- Precision NTP Time Stamping for forensic analysis and compliance reporting
- Process traffic at wire speed with zero performance impact
- High-capacity filtering with IPv4, IPv6, MAC, L4Port, VLAN, and Ethertype support
- 1:1, 1:N, N:1, and N:N traffic patterns with hash-based load balancing
- GRE, L2GRE, VxLAN, ERSPAN encapsulation and decapsulation
- Remove, edit, add VLAN tags with QinQ support and stripping capabilities
- Dual power supplies
- Durable, metal chassis
Benefits
- Reduce the quantity of monitor links to a number that is more manageable for the out of band network tool or tools

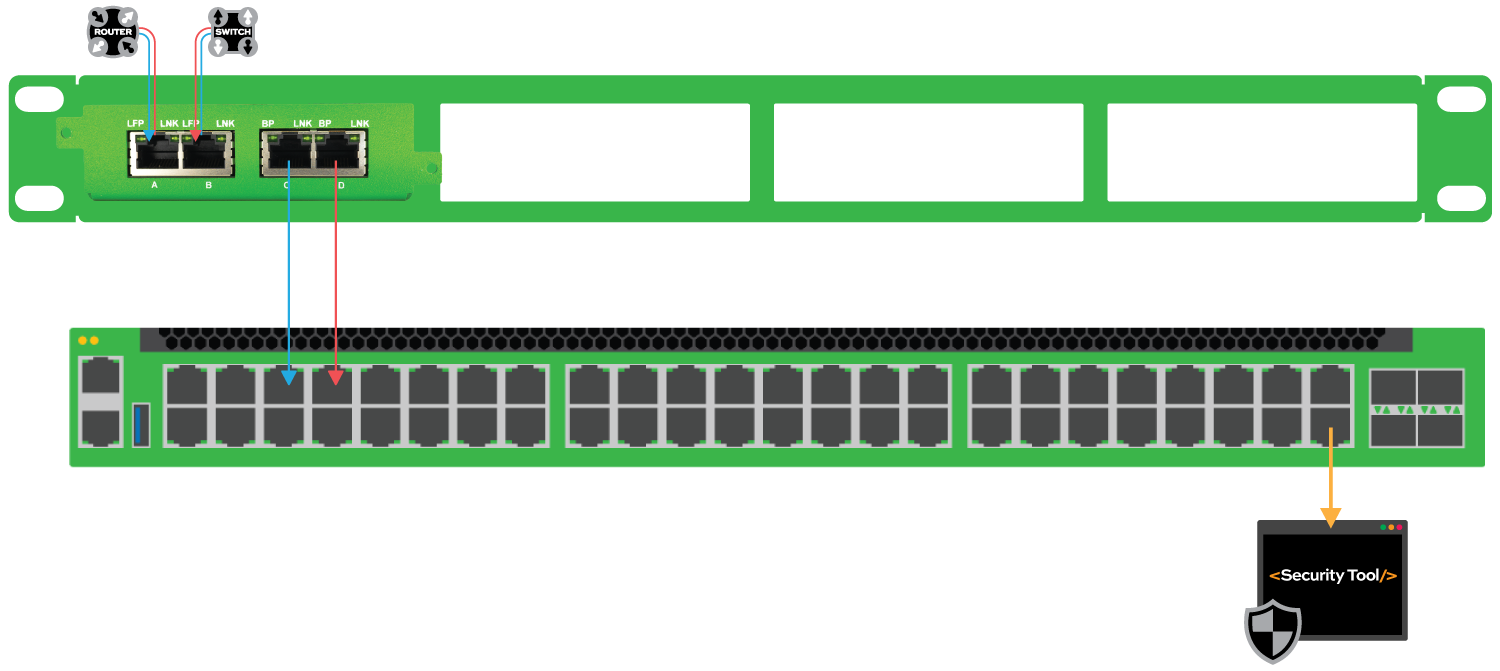

- Combine with network TAPs to reduce network complexity
- Reduce the processing load of monitoring tools by removing duplicate packets introduced by SPAN ports
- Free up ports on an existing (and possibly expensive) Network Packet Broker
- Reduce network complexity
- Enable infrastructure upgrades
- Facilitate traffic growth
- Deliver relevant traffic to tools
- Compatible with MSA compliant transceivers
Specifications
Part # |
Network Speed |
Port Count |
Port Summary |
Power Type |
---|---|---|---|---|
AF1G52AC |
10/100/1000M (1G), 10G |
(48) Copper Ports(4)
|
Ports 1-48 are 10/100/1000M Copper Ports
|
AC |
AF1G52DC |
10/100/1000M (1G), 10G |
(48) Copper Ports(4)
|
Ports 1-48 are 10/100/1000M Copper Ports
|
DC |
10/100/1000M (1G), 10G
(48) Copper Ports(4)
SFP+ Ports
Ports 1-48 are 10/100/1000M Copper Ports
Ports 49-52 are 1G/10G SFP+ Ports
AC
10/100/1000M (1G), 10G
(48) Copper Ports(4)
SFP+ Ports
Ports 1-48 are 10/100/1000M Copper Ports
Ports 49-52 are 1G/10G SFP+ Ports
DC
