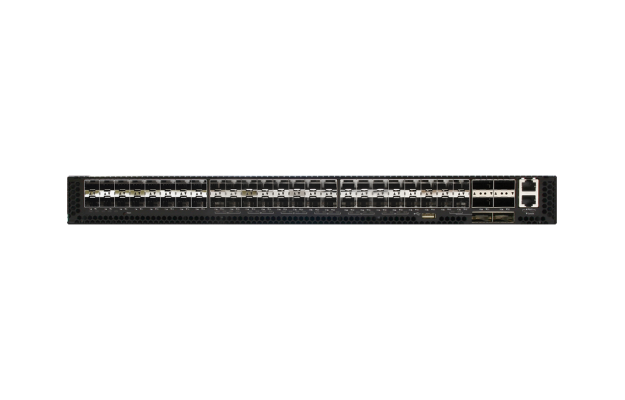

PacketMAX: 10G Advanced Aggregator

1G/10G/40G | 1U Chassis | 54 Port | Filtering, Aggregating and Load Balancing
  • AA-10G-Products625x400.png
  • AA-10G-Products625x400-3.png

Request a Quote

Supports Filtering, Aggregation and Load Balancing.

The AA10G54AC is a network aggregator, designed for use in top-of-rack applications or at the network edge. The system can be used to optimize port utilization of existing infrastructure or as a stand alone device in L2-L4 Filtering applications.

There are no additional per-port license fees, and it is compatible with MSA compliant SFP+/ QSFP+ pluggables/transceivers. 40G ports support flexible port speed (port splittling), when the 40G ports are split the system supports up to 72x10G ports.

  • Aggregate network traffic to a single or multiple tools (1:1, 1:N, N:1, N:N)
  • Supports 1G/10G/40G network speeds
  • OpenFlow/SDN enabled
  • IPv4/IPv6 and UDF Filter support
  • Start and Terminate GRE and L2GRE Tunnels
  • Start and Terminate VXLAN Tunnels
  • Up to 72 fully supported ports - no additional per-port license fees
  • Port splitting functionality
  • Supports jumbo frames
  • Hot swappable, dual power supplies AC standard, DC available
  • 1k filters
  • Session/flow aware load balancing
  • Configurable hash-based load balancing
  • Flow replication and port mirroring
  • Data burst buffering
  • Management through GUI, and SNMP
Model No. Ports Network Speed 10G Ports 40G Ports Power Supplies
AA10G54AC AA-10G-Products625x400-3 1G/10G/40G (48) SFP/SFP+ (6) QSFP+ AC
AA10G54DC AA-10G-Products625x400-3 1G/10G/40G (48) SFP/SFP+ (6) QSFP+ DC
View available pluggables and cables
