| Model No. | Network Speed | Type | Media | Connector | Optical Bandwidth |
Description |
|---|---|---|---|---|---|---|
| 1GbE SFP |
||||||
| SFP+LR | 1Gbps/10Gbps | 1000BASE-LX 1G Ethernet 10GBASE-LR/LW 10G Ethernet | 9u SMF | LC | 1260nm-1600nm RX 1260nm-1355nm TX | 1GbE SFP |
| SFP+T | 10 Mbps/100 Mbps/ 1 Gbps | 10/100/1000 BASE-T | Category 5 UTP | RJ45 | -- | 10G Optical SFP+ |
| SFPEX40km | 1Gbps | SONET OC-48 LR-1 / SDH STM L-16.1 SONET OC-12 / SDH STM 4 SONET OC-3 / SDH STM-1 Gigabit Ethernet / 1x/2x Fibre Channel | 9u SMF | LC | 1270nm-1600nm RX 1280nm-1355nm TX | 1GbE SFP |
| SFPEX90km | 1Gbps | SONET OC-48 LR-1 / SDH STM L-16.1 SONET OC-12 / SDH STM 4 SONET OC-3 / SDH STM-1 Gigabit Ethernet / 1x/2x Fibre Channel | 9u SMF | LC | 1270nm-1600nm RX 1280nm-1355nm TX | 1GbE SFP |
| SFPFX | 1Gbps | 1000Base-SX | 50u MMF/ 62.5u MMF | LC | 770nm-860nm RX 830nm-860nm TX | 1GbE SFP |
| SFPLX | 1Gbps | 1000Base-LX | 9u SMF | LC | 1270nm-1500nm RX 1270nm-1355nm TX | 1GbE SFP |
| SFPLX-WB | 1Gbps | 1000Base-LX | 9u SMF | LC | 1265nm-1600nm RX 1270nm-1360nm TX | 1GbE SFP |
| SFPSX | 1Gbps | 1000Base-SX Ethernet | 50u MMF/ 62.5u MMF | LC | 770nm-860nm RX 830nm-860nm TX | 1GbE SFP |
| SFPTX | 1Gbps | 10/100/1000 BASE-T | Category 5 UTP | RJ45 | - | 1GbE SFP |
| SFPTX1G | 1Gbps | 10/100/1000 BASE-T | Category 5 UTP | RJ45 | - | 1GbE SFP |
| SFPZX | 1Gbps | 1000BASE-LW 1G Ethernet | 9u SMF | LC | 1270nm-1600nm RX 1430nm-1580nm TX | 1GbE SFP |
| Model No. | Network Speed | Type | Media | Connector | Optical Bandwidth |
Description |
|---|---|---|---|---|---|---|
| 10G Optical SFP+ | ||||||
| SFP+-10GBiDi-1270-1330 | 10Gbps | SFP-10G-BX | 9u SMF | LC simplex | 1270nm-TX/1330nm-RX | 10G Optical SFP+ |
| SFP+-10GBiDi-1330-1270 | 10Gbps | SFP-10G-BX | 9u SMF | LC simplex | 1330nm-TX/1270nm-RX | 10G Optical SFP+ |
| SFP+ER | 10Gbps | 10GBASE-ER/EW 10G Ethernet | 9u SMF | LC | 1260nm-1600nm RX 1530nm-1565nm TX | 10G Optical SFP+ |
| SFP+SR | 1Gbps/10Gbps | 1000BASE-SX 1G Ethernet 10GBASE-SR/SW 10G Ethernet | 50u MMF/ 62.5u MMF | LC | 840nm-860nm RX 840nm-860nm TX | 10G Optical SFP+ |
| SFP+LR | 1Gbps/10Gbps | 1000BASE-LX 1G Ethernet 10GBASE-LR/LW 10G Ethernet | 9u SMF | LC | 1260nm-1600nm RX 1260nm-1355nm TX | 10G Optical SFP+ |
| SFP+LR10G | 10Gbps | 10GBASE-LRM 10G Ethernet 1200-SM-LL-L 10G Fibre Channel | 9u SMF | LC | 1260nm-1600nm RX 1260nm-1355nm TX | 10G Optical SFP+ |
| SFP+LRM10G | 10Gbps | 10GBASE-LRM 10G Ethernet | 50u MMF/ 62.5u MMF | LC | 1260nm-1600nm RX 1260nm-1355nm TX | 10G Optical SFP+ |
| SFP+SR10G | 10Gbps | 10GBASE-SR/SW 10G Ethernet | 50u MMF/ 62.5u MMF | LC | 840nm-860nm RX 840nm-860nm TX | 10G Optical SFP+ |
| SFP+T | 10 mbps/100 mbps/1 gbps | 10/100/1000 BASE-T | Category 5 UTP | RJ45 | 10G Optical SFP+ | |
| SFP+SR_T | 1Gbps/10Gbps | 10GBASE-SR/SW 10G Ethernet | 50u MMF/ 62.5u MMF | LC | 840nm-860nm RX 840nm-860nm TX | 10G Optical SFP+ |
| SFP+ZR80 | 10Gbps | 10GBASE-ER/EW 10G Ethernet | 9u SMF | LC | 1260nm-1600nm RX 1530nm-1565nm TX | 10G Optical SFP+ |
| Model No. | Network Speed | Type | Media | Connector | Optical Bandwidth |
Description |
|---|---|---|---|---|---|---|
| QSFP | ||||||
| QSFP+100GBiDi | 1Gbps/10Gbps | 40GBASE-SR4 | OM4 50 / 125μm MMF | Single 1x12 MPO receptacle | 840nm-860nm RX 840nm-860nm TX | QSFP |
| QSFP+10GLR | 10Gbps | 10GBASE-SR/SW | OM4 50 / 125μm MMF | LC | 840nm-860nm RX 840nm-860nm TX | QSFP |
| QSFP+28SR4 | 100Gbps | 100GBASE-SR4 100G Ethernet | OM4 50 / 125μm MMF | Single MPO12 receptacle | 840nm-860nm RX 840nm-860nm TX | QSFP |
| QSFP+28SRSWDM4 | 100Gbps | 100G Ethernet over Duplex MMF | OM4 50 / 125μm MMF | Duplex LC receptacles | λ1 850 RX, 850 TX λ2 880 RX, 880 TX λ3 910 RX, 910 TX λ4 940 RX, 940 TX | QSFP |
| QSFP+40-LR4 | Supports 41.2 Gb/s aggregate bit rates | 40BASE-LR4 | SMF | LC Connector |
Lane center wavelengths (range)
1264.5 – 1277.5
1284.5 – 1297.5
1304.5 – 1317.5 1324.5 – 1337.5 |
QSFP |

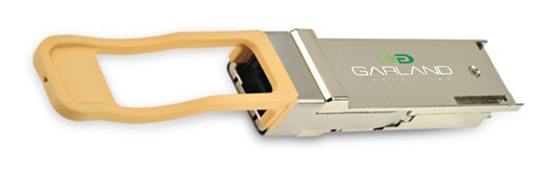

| QSFP+40G | Multi-rate capability: 1.06Gb/s to 10.5Gb/s per channel | 40BASE-SR4 | MMF | Single 1x12 MPO receptacle QSFP+ Gen2 Optical Transceiver Module | 840nm-860nm RX 840nm-860nm TX | QSFP |
| QSFP+40G-ER4 | Multi-rate capability: 1.06Gb/s to 10.5Gb/s per channel | 40BASE-SR4 | MMF | Single 1x12 MPO receptacle QSFP+ Gen2 Optical Transceiver Module | 840nm-860nm RX 840nm-860nm TX | QSFP |
| QSFP+40GBiDi | Multi-rate capability: 1.06Gb/s to 10.5Gb/s per channel | 40BASE-SR4 | MMF | Single 1x12 MPO receptacle QSFP+ Gen2 Optical Transceiver Module | 840nm-860nm RX 840nm-860nm TX | QSFP |
| QSFP28PSM4 | 10Gbps | 10GBASE-SR/SW 10G Ethernet | 50u MMF / 62.5u MMF | LC | 840nm-860nm RX 840nm-860nm TX | QSFP |
| Model No. | Network Speed | Reach | Type | Media | Connector | Optical Bandwidth |
Description |
|---|---|---|---|---|---|---|---|
| Cables and Fibers |
|||||||
| 100401BK 1FT Black Ethernet Cable | - | 100 M | Copper | Cat 5e Cat 6 | RJ45 | - | Ethernet Cable |
| 102617 50um 10Gb Fiber Optic Cable | 10Gbps | - | - | 50u MMF / 62.5u MMF | - | 840nm-860nm RX 840nm-860nm TX | Fiber Cable |
| 102732 Multimode Fiber Cable | 10Gbps | - | - | 50u MMF / 62.5u MMF | - | 840nm-860nm RX 840nm-860nm TX | Fiber |
| 102794 9/125 Singlemode Fiber Cable | - | - | - | 9u SMF | - | 1260nm-1600nm RX 1260nm-1355nm TX | Fiber cable |
| Cable Tie Mount | - | 0.50" long x 0.50" wide | - | - | - | - | The 4-way adhesive backed cable tie mount made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. Designed for indoor, high-temperature environments, and comes in packages of 1000. |
| Cable Ties | - | - | - | - | - | - | Cable ties |
| Console Cable DB9-RJ45 | - | - | Copper | Cat 5e Cat 6 | RJ45 | - | Console Cable DB9 Female to RJ45 6 Feet |
| Console Serial Cable M10GxxBP Modules | - | - | Copper | - | RJ11 | - | Console Serial Cable M10GxxBP Modules: DB9 Female to RJ11 4 Foot Cable |
| MTP12F-Y-Cable-1 | - | - | - | - | - | - | MTP Y Monitoring Cable - OM4 - 1 meter |
| QSFP28-4SFP28-Cable_1 | - | - | - | - | - | - | 100-Gigabit Ethernet QSFP28 to 4 x 25-Gigabit Ethernet SFP28 Splitter Cable - 1 Meter |
| QSFP28-4SFP28-Cable_2 | - | - | - | - | - | - | Direct Attach Copper Cable QSFP28 to 4x 25Gb SFP28, Pre-Cut 2 Meter |
| QSFP28-4SFP28-Cable_3 | - | - | - | - | - | - | Direct Attach Copper Cable QSFP28 to 4x 25Gb SFP28, Pre-Cut 3 Meter |
| Serial Cable 10Ft DB9 Male to Female for 8 Port | - | 10 ft | Copper | - | DB9 | - | Serial Cable 10Ft DB9 Male to Female for 8 Port |
| USB25 | - | 2.5 ft | Copper | USB | mini-USB Type B (M) to RJ-45 (M) | - | USB 2.5 foot |
| Model No. | Network Speed | Form Factor | # of TAPs | Failsafe | Network | Monitor | Serial Port | Power |
|---|---|---|---|---|---|---|---|---|
| RMS-1U-v2 |  |
1U Rack Shelf Mount Kit - Hold up to 4 Portable 1/10G TAPs | ||||||

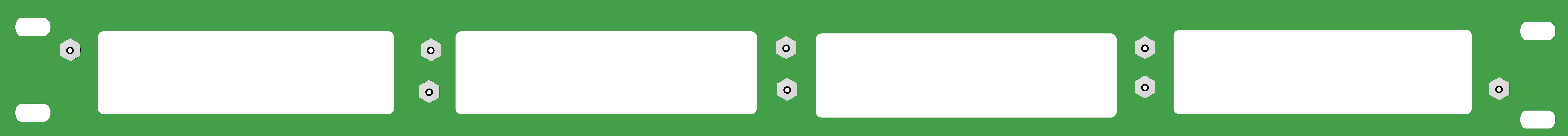

| RMP-1U |
 |
1U Rack Mount Kit - Hold up to 4 portable TAPs | ||||||
|
Model# + DIN_MOUNT |
Select the Garland Technology portable network TAP model # and add “DIN_MOUNT.” e.g., P1GCCB_OTDIN_MOUNT |
|||||||
| Field DC-DC Converter | |||||
|---|---|---|---|---|---|
| Model # | Input Voltage |
Output Voltage |
Output Current |
Output Power |
Ripple/noise |
|
PWR-DCDC1 |
Typ(Vdc)/ Range (Vdc) |
(VDC) |
min(mA) / max(mA) |
max(W) |
max(mVp-p) |
| 24 / 9 ~ 36 |
5 |
150 / 3000 |
15 |
100 | |
| Power Lock Connectors | |||||
|---|---|---|---|---|---|
| Model # | Description | ||||
|
PLTYPE1 |
Power Supply Lock System for Portable TAPs (except P100CCA) | ||||
|
PLTYPE2 |
Power Supply Lock System for P100CCA Portable TAP | ||||
