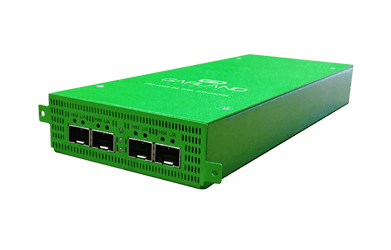

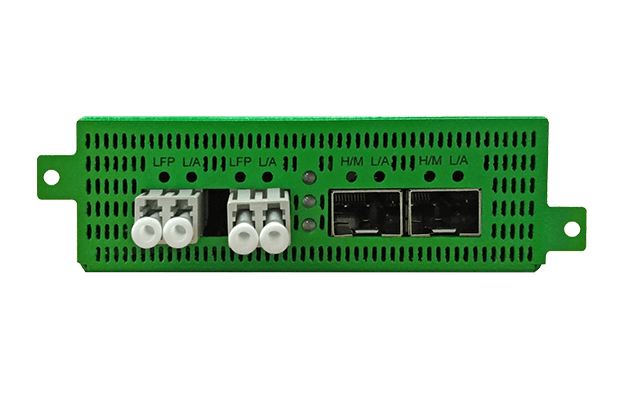

XtraTAP: All-In-1

Visibility starts with the packet. A network TAP (test access point) is a hardware device that allows you to access and monitor your network traffic by copying packets without impacting or compromising network integrity.

The XtraTAP^TM: All-In-1 are purpose-built active network TAPs that support filtering, tap ‘breakout,’ aggregation, and regeneration/SPAN modes guaranteeing your tools see every bit, byte, and packet.^®

This advanced TAP with Packet Broker functionality provides the ultimate flexibility and ease of use for a range of solutions, from providing media conversion, to easily filtering out the traffic that is not used or filtering only the traffic needed to monitor. Leading to optimized tool performance, with better visibility and reduced processing burden with unneeded data.

Specifications
Resources

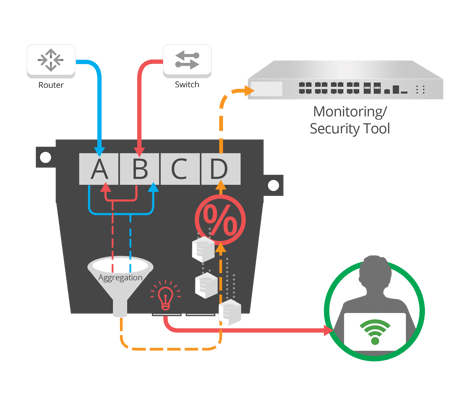

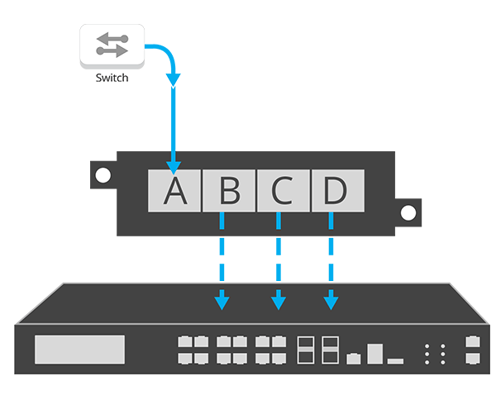

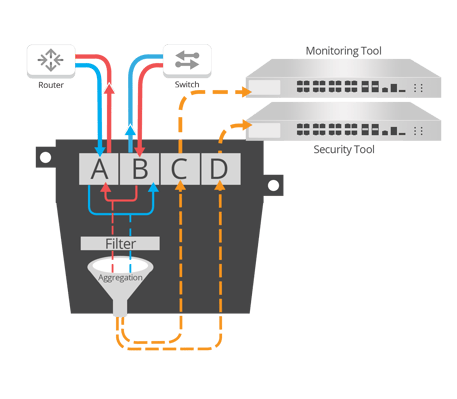

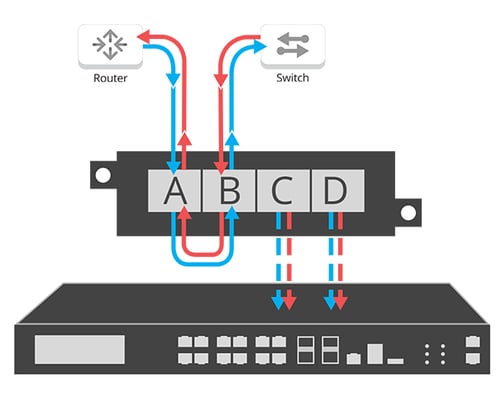

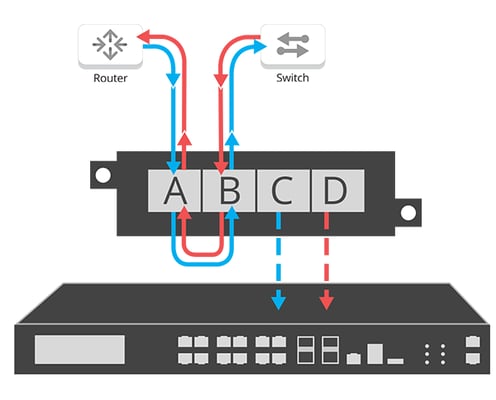

Network Diagrams
Related Products

Model No.	Network Speed	Network	Split Ratio	Monitor	Filtering	Breakout	Aggregation	Regeneration / SPAN
RMS-1U-v2		1U Rack Mount Kit - Hold up to 4 Portable 1/10G TAPs
P10GSSFE-5	1/10G	LR Single mode Fiber	50/50	SFP+	Yes	Yes	Yes	Yes
P10GSSFE-6	1/10G	LR Single mode Fiber	60/40	SFP+	Yes	Yes	Yes	Yes
P10GSSFE-7	1/10G	LR Single mode Fiber	70/30	SFP+	Yes	Yes	Yes	Yes
P10GMSFE-5	1/10G	SR Multi-mode Fiber	50/50	SFP+	Yes	Yes	Yes	Yes
P10GMSFE-6	1/10G	SR Multi-mode Fiber	60/40	SFP+	Yes	Yes	Yes	Yes
P10GMSFE-7	1/10G	SR Multi-mode Fiber	70/30	SFP+	Yes	Yes	Yes	Yes
RMP-1U		1U Rack Mount Kit - Hold up to 4 Portable 1G TAPs
P1GCCFE	10/100/1000M	2 Copper-RJ45	NA	2 Copper-RJ45	Yes	Yes	Yes	Yes
P1GCSFE	10/100/1000M	2 Copper-RJ45	NA	2 SFP	Yes	Yes	Yes
P1GMCFE	1G	2 SX Multi-mode	*	2 Copper-RJ45	Yes	Yes	Yes	Yes
P1GMSFE	1G	2 SX Multi-mode	*	2 SFP	Yes	Yes	Yes	Yes
P1GSCFE	1G	2 LX Single-mode	*	2 Copper-RJ45	Yes	Yes	Yes	Yes
P1GSSFE	1G	2 LX Single-mode	*	2 SFP	Yes	Yes	Yes	Yes
*Split ratios are available in 50/50, 60/40, 80/20, or 90/10, please inquire. View available SFPSX and SFPLX Pluggables
