BiDi Passive Fiber Network TAPs

40G-SR-BiDi  |  Cisco BiDirectional Optical Technology
  • OM4502-40GSR4BiDi
  • BiDi 21 TAP

Request a Quote

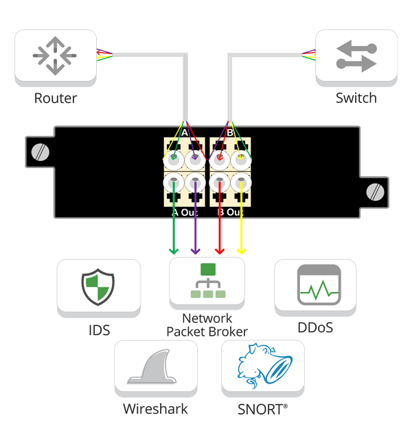

Network test access points (TAPs) are hardware tools that allow you to monitor your network. All fiber breakout TAPs are passive, purpose-built hardware devices that make a 100% copy of your network’s data allowing your monitoring tools to see every bit, byte and packet.® Passive TAPs are non-powered devices that will not cause the live network devices to loose the link between one another if power is lost.
  • Exclusive 21 TAP 1U high density solution
  • Unique design provides the flexibility to TAP multi-mode OM3/OM4/OM5 fiber types
  • 100% network visibility
  • 100% secure and invisible; no IP address; no Mac address; cannot be hacked
  • Passes physical layer errors
  • Supports tap 'breakout' mode
  • 1U rack mount kit holds up to 4 modules, each module can have 1, 2 or 3 TAPs
  • Plug & Play easy installation, no configuration; no power source required
  • Made, tested and certified in the USA
Model No. Network Speed Ports No. of TAPs Split Ratio* Wavelengths Media Connector/Mode
RMP-1U 1U Rack Mount Plate 1U Rack Mount Kit - Hold up to 4 Modules, each Module can have 1, 2 or 3 portable TAPs

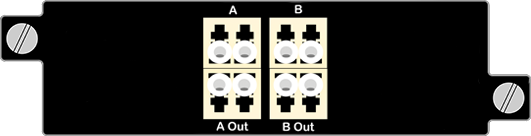

OM4501-40GSR4BiDi Up to 40G Multi-mode BiDi TAP  1 50/50 800/950nm Fiber-OM3/OM4* Fiber-LC Multi-mode Fiber

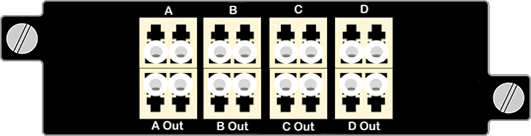

OM4502-40GSR4BiDi Up to 40G  Dual Multi-Mode BiDi TAP  2 50/50  800/950nm  Fiber-OM3/OM4* Fiber-LC Multi-mode Fiber
OM4503-40GSR4BiDi  Up to 40G  Tri Multi-mode BiDi TAP 50/50  800/950nm  Fiber-OM3/OM4* Fiber-LC Multi-mode Fiber

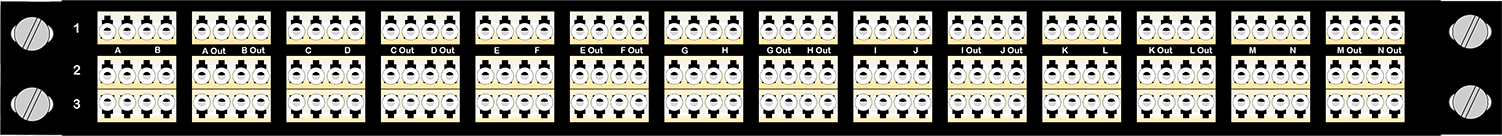

OM45021-40GSR4BiDi  Up to 40G  21 TAP BiDi Solution 21  50/50 800/950nm  Fiber-OM3/OM4* Fiber-LC Multi-mode Fiber
OM4701-40GSR4BiDi  Up to 40G  Multi-mode BiDi TAP 70/30  800/950nm  Fiber-OM3/OM4* Fiber-LC Multi-mode Fiber
OM4702-40GSR4BiDi  Up to 40G  Dual Multi-Mode BiDi TAP  70/30 800/950nm  Fiber-OM3/OM4* Fiber-LC Multi-mode Fiber
OM4703-40GSR4BiDi   Up to 40G  Tri Multi-mode BiDi TAP 70/30  800/950nm  Fiber-OM3/OM4* Fiber-LC Multi-mode Fiber
OM47021-40GSR4BiDi  Up to 40G  21 TAP BiDi Solution 21  70/30  800/950nm  Fiber-OM3/OM4* Fiber-LC Multi-mode Fiber

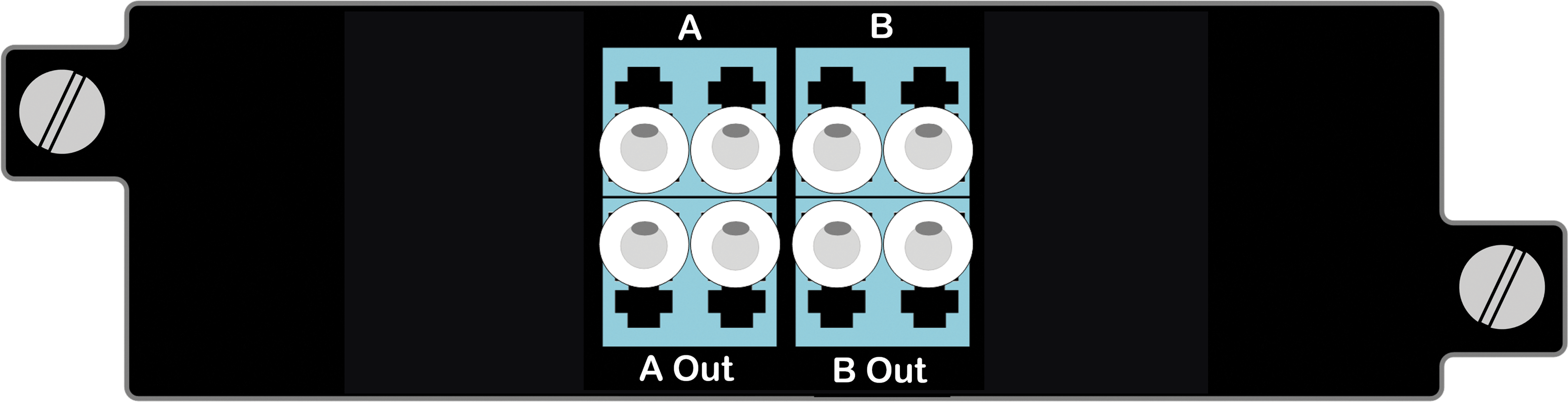

OS2502-BiDi 1G/10G  Single SM BiDi Passive Fiber 2TAP 2 50/50

1270~1350nm/
1450~1530nm/
1510~1590nm



Fiber-OS2



Fiber-LC Single-Mode

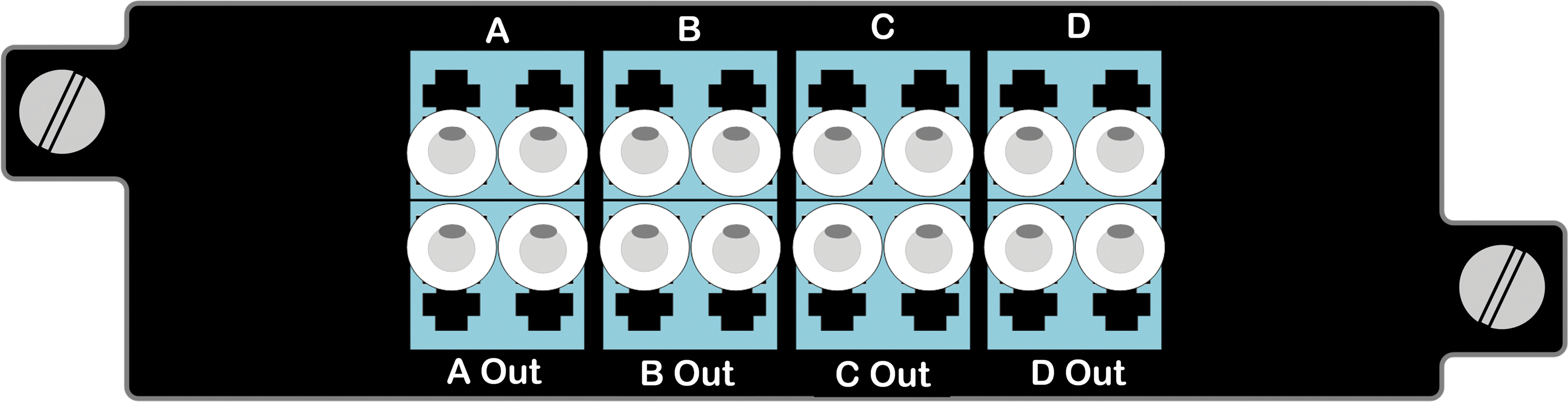

OS2504-BiDi 1G/10G  Dual SM BiDi Passive Fiber 4TAP 4  50/50

1270~1350nm/
1450~1530nm/
1510~1590nm



Fiber-OS2



Fiber-LC Single-Mode

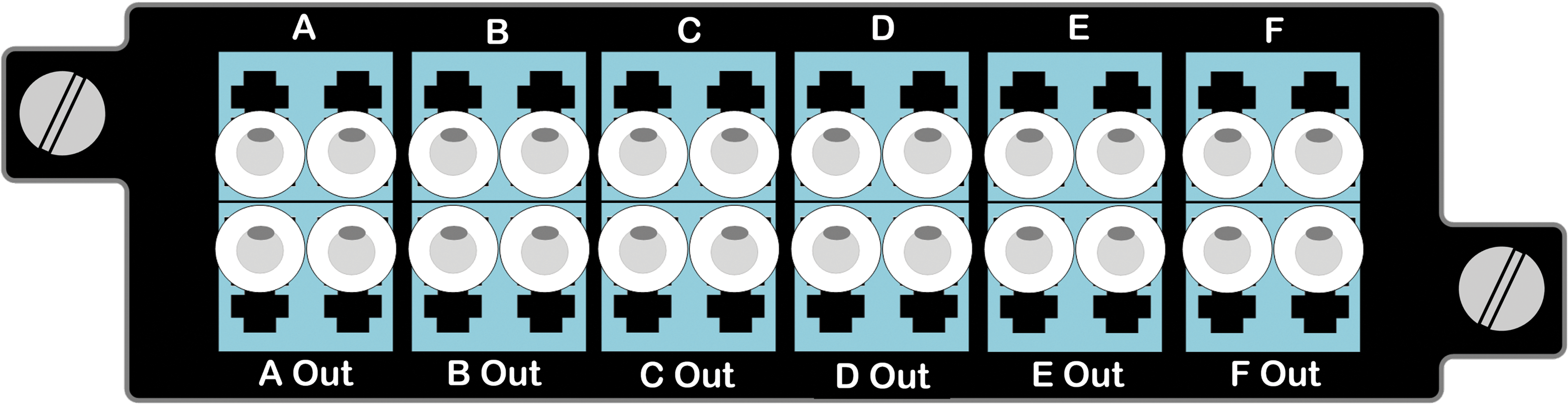

OS2506-BiDi 1G/10G  Tri SM BiDi Passive Fiber 6TAP 6  50/50 1270~1350nm/

1450~1530nm/
1510~1590nm



Fiber-OS2



Fiber-LC Single-Mode

OM3/OM4* Available in OM5

12 Fiber BiDi TAP Flow High Density Network Flow
Passive Fiber Modular Chassis
Can accommodate between 16-24 single TAP modules, including 16 single TAP 40G-SR4 BiDi TAPs
