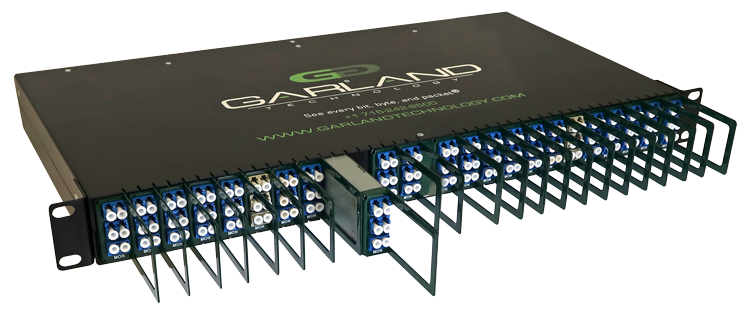

SelectTAP: Fiber Modular Chassis

Scalable Visibility Solution for 1G/10G/25G/40G/100/400G Network Monitoring

Visibility starts with the packet. A network TAP (test access point) is a hardware device that allows you to access and monitor your network traffic by copying packets without impacting or compromising network integrity.

The SelectTAPTM Fiber Modular Chassis provides full duplex packet visibility, guaranteeing your tools see every bit, byte, and packet.®

The SelectTAP a passive high density and high performance visibility solution that supports 1G, 10G, 25G, 40G, 100G and 400G network speeds, and features a scalable design allowing you to provide complete visibility to your monitoring solutions today and tomorrow.

Select TAP Passive Fiber Chassis SelectTAP Passive Fiber Chassis SelectTAP Passive Fiber Chassis SelectTAP Passive Fiber Chassis
Select TAP Passive Fiber Chassis
SelectTAP Passive Fiber Chassis
SelectTAP Passive Fiber Chassis
SelectTAP Passive Fiber Chassis

Key Features

  • Provide 100% full duplex traffic visibility

  • Supports tap 'Breakout' Mode
  • Supports single-mode: OS1/OS2 and multi-mode: OM1/OM2/OM3/OM4/OM5 media for long range and short range environments
  • OM5 fiber supports SWDM (Short Wavelength Division Multiplexing), this enables 40/100G-SR to be run on LC-duplex fibers giving networks a clear path to migrate to 40/100G
  • Supports Cisco BiDirectional optical technology
  • Supports split ratios of: 90/10, 80/20, 70/30, 60/40, 50/50, 33.3/33.3/33.3
  • Supports Passive Replication

Additional

  • Chassis accommodates 16 to 24 network TAP modules, based on configuration (24 LC TAP Modules, 16 MPO/MTP® TAP Modules, 16 BiDi LC TAP Modules)
  • Durable, all steel construction for chassis and TAP network modules
  • No power, no heat, no IP address, no MAC address - 100% passive
  • Change network TAP modes on-the-fly or in the future
  • Mix and match modules by media and/or speeds
  • Made, tested and supported in the USA
Model No. Network Speed Ports No. of TAPs Split Ratio* Wavelengths Media Connector/Mode
FMC-1U Fiber Modular Chassis
OS2501M 1/10/25/40/100G Single-mode Fiber 1 50/50 1290-1330nm
1530-1570nm
Fiber-OS1/OS2 Fiber-LC Single-mode Fiber
OS2701M 1/10/25/40/100G 1 70/30 1290-1330nm
1530-1570nm
Fiber-OS1/OS2  Fiber-LC Single-mode Fiber
OS2501-BiDiM 1G/10G 1 50/50 1270-1350nm 1450-1530nm 1510-1590nm Fiber-OS2 Fiber-LC Single-mode Fiber
OS2502-BiDiM 1G/10G 2 50/50 1270-1350nm 1450-1530nm 1510-1590nm Fiber-OS2 Fiber-LC Single-mode Fiber
OS2702-BiDiM 1G/10G 2 70/30 1270-1350nm 1450-1530nm 1510-1590nm Fiber-OS2 Fiber-LC Single-mode Fiber
OS2501WM 1/10/25/40/100/400G  1  50/50
1270-1350nm
1510-1590nm
Fiber - OS1/OS2 Fiber LC Single Mode Fiber
OS2701WM 1/10/25/40/100/400G  1  70/30
1270-1350nm
1510-1590nm
Fiber - OS1/OS2 Fiber LC Single Mode Fiber
OS2501-PSM4BM 100G MTP 12 1 50/50 1310nm Fiber-OS1/OS2 MTP12 B Style Male Connectors (MPO)
OS2701-PSM4BM 100G 1 70/30 1310nm Fiber-OS1/OS2 MTP12 B Style Male Connectors (MPO)
OM1501M 1/10G Multi-mode Fiber 1 50/50 850-1300nm  Fiber-OM1/OM2 Fiber-LC Multi-mode Fiber
OM1701M 1/10G 1 70/30 850-1300nm Fiber-OM1/OM2 Fiber-LC Multi-mode Fiber
OM4501M 1/10/25G 1 50/50 850nm Fiber-OM3/OM4 Fiber-LC Multi-mode Fiber
OM4701M 1/10/25G 1 70/30 850nm Fiber-OM3/OM4 Fiber-LC Multi-mode Fiber
OM5501M 1/10/25/40/100G*  1 50/50 850-950nm Fiber OM5 Fiber-LC-Multi-Mode
OM5701M 1/10/25/40/100G*  1 70/30 850-950nm Fiber OM5 Fiber-LC-Multi-Mode
OM4501-40GSRBiDiM 40G BiDi 1 50/50 800-950nm Fiber-OM3/OM4 Fiber-LC Multi-mode Fiber
OM4701-40GSRBiDiM 40G 1  70/30  800-950nm Fiber-OM3/OM4 Fiber-LC Multi-mode Fiber
OM5501-SRBiDiM  40/100G* 1 50/50  800-950nm Fiber OM5  Fiber-LC-Multi-Mode
 OM5701-SRBiDiM  40/100G* 1 70/30  800-950nm Fiber OM5 Fiber-LC-Multi-Mode
OM4501-SR4BM 40/100G MTP 12 1 50/50  850nm Fiber-OM3/OM4 MTP-12 Multi-Mode Fiber
OM4701-SR4BM 40/100G 1 70/30 850nm Fiber-OM3/OM4 MTP-12 Multi-Mode Fiber
OM5501-SR4BM  40/100/400G* 1  50/50 850-950nm  Fiber OM5 MTP12 Multi-Mode Fiber
OM5701-SR4BM  40/100/400G* 1 50/50 850-950nm  Fiber OM5  MTP12 Multi-Mode Fiber
OM4501-100GSR10AM 100G MTP 24 1  50/50 850nm Fiber-OM3/OM4* MTP-24 Multi-Mode Fiber
OM4701-100GSR10AM 100G 1 70/30 850nm Fiber-OM3/OM4* MTP-24 Multi-Mode Fiber
OS23321X3M 1G/10G/25G/40G/100G BiDi
 1 33.3 / 33.3 / 33.3 1310-1550nm Fiber-OS2  Fiber-LC Single-mode Fiber

OM43321X3M

1G/10G 1 33.3 / 33.3 / 33.3 850nm

Fiber-OM3/OM4

Fiber-LC Multi-mode Fiber
OS2 Fiber supports OS1 & OS2; OM1 Fiber supports OM1 & OM2; OM5 Fiber supports OM3 & OM4
OM3/OM4

*Used for 100G SWDM4. Options available for 100G-CWDM4.

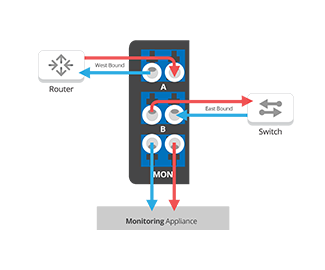

Passive Fiber Modular Chassis - Single mode Flow Passive Fiber Modular Chassis - Multi- mode Flow
Single-mode Fiber Multi-mode Fiber
Passive Fiber Modular Chassis - MTP 12 Multi Mode Fiber Passive Fiber Modular Chassis - MTP 24 Multi Mode Fiber
MTP-12 Multi-Mode Fiber MTP-24 Multi-Mode Fiber
Passive Fiber Modular Chassis - BiDi Multi Mode Fiber
BiDi - Multi-mode Fiber
