RegenTAP: Passive

1G/10G/25G/40G/100G  |  Portable  or   High Density |  1x3 Replication

Visibility starts with the packet. A network TAP (test access point) is a hardware device that allows you to access and monitor your network traffic by copying packets without impacting or compromising network integrity.

RegenTAPs: Passive come with a fixed configuration, taking one full duplex input and delivering three copies of the network traffic.

Regeneration or replication TAPs are used to capture 100% full duplex traffic that can then be sent to multiple monitoring appliances to analyze your network.

RegenTAP: Passive RegenTAP: Passive RegenTAP: Passive
RegenTAP: Passive
RegenTAP: Passive
RegenTAP: Passive

Key Features

  • Provide 100% full duplex traffic visibility
  • Supports speeds of 1G/10G/25G/40G/100G
  • Replicate any network traffic - Splits one single-mode, full duplex input to 2 copies or 3 SPAN copies
  • Supports jumbo frames
  • Passes physical errors

Additional

  • Available in portable, modular, high density
  • Easy configuration, no power required
  • Supports jumbo frames
  • Optional one or two segment configurations per module

  • Made, tested and supported in the USA

Model No Network Speed Ports Network Monitor # of TAPs Split Ratio Wavelengths Media Connector/Mode

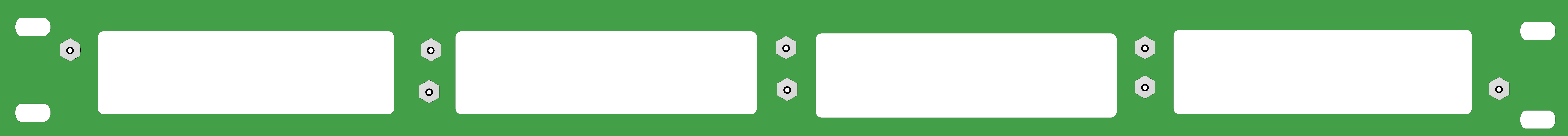

RMP-1U 1U 4 Slot Rack Mount Plate  1U Rack Mount Kit - Hold up to 4 Modules, each Module can have 1, 2, 3 or 4 TAPs
 OS23321X3 1G/10G/25G/40G/100G Single-mode 1 TAP 1 LC 3 LC 1 33.3/33.3/33.3 1310/1550nm Fiber-OS2 Fiber LC Single-Mode Fiber
OS23341X3  1G/10G/25G/40G/100G Single-Mode 2 TAPs 1 LC 3 LC 2 33.3/33.3/33.3 1310/1550nm Fiber-OS2 Fiber LC Single-Mode Fiber
OS23361X3  1G/10G/25G/40G/100G Single-Mode 3 TAPs 1 LC 3 LC 3 33.3/33.3/33.3 1310/1550nm Fiber-OS2 Fiber LC Single-Mode Fiber
 OS233421X3 1G/10G/25G/40G/100G Single-Mode High Density TAPs 1 LC 3 LC 21 33.3/33.3/33.3 1310/1550nm Fiber-OS2 Fiber LC Single-Mode Fiber
FMC-1U Fiber Modular Chassis
OS23321X3M 1G/10G/25G/40G/100G Passive Fiber Modula rChassis- 1 LC  3 LC 1  33.3/33.3/33.3  1310/1550nm Fiber-OS2 Fiber LC Single-Mode Fiber
OM43321X3M 1G/10G 1 LC 3 LC 1  33.3/33.3/33.3 850nm Fiber-OM3/OM4 Fiber-LC Multi-mode Fiber
Replication-HD1x3



 OS23321X3M-(larger)-1

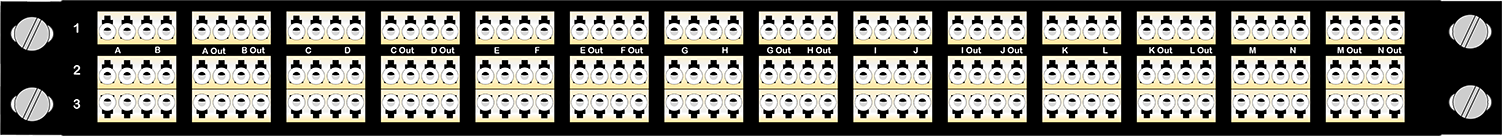

1U High Density

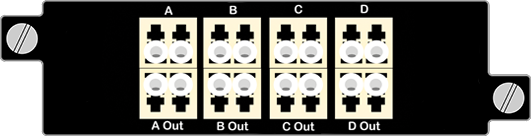

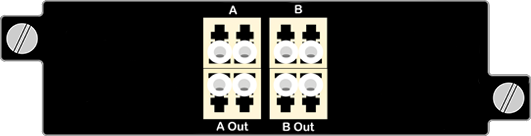

Diagram: Light goes in “port A,” 80% comes out port “B” and 10% out both “Aout” ports. Light goes in “port B,” 80% comes out port “A” and 10% out both “Bout” ports.

 SelectTAP 1U ModularSelectTAPTM: Fiber Modular Chassis
