Multi-mode Passive Fiber Network TAPs
Visibility Solution for 1G/10G/25G/40G/100G Network Monitoring
Visibility starts with the packet. A network TAP (test access point) is a hardware device that allows you to access and monitor your network traffic by copying packets without impacting or compromising network integrity.

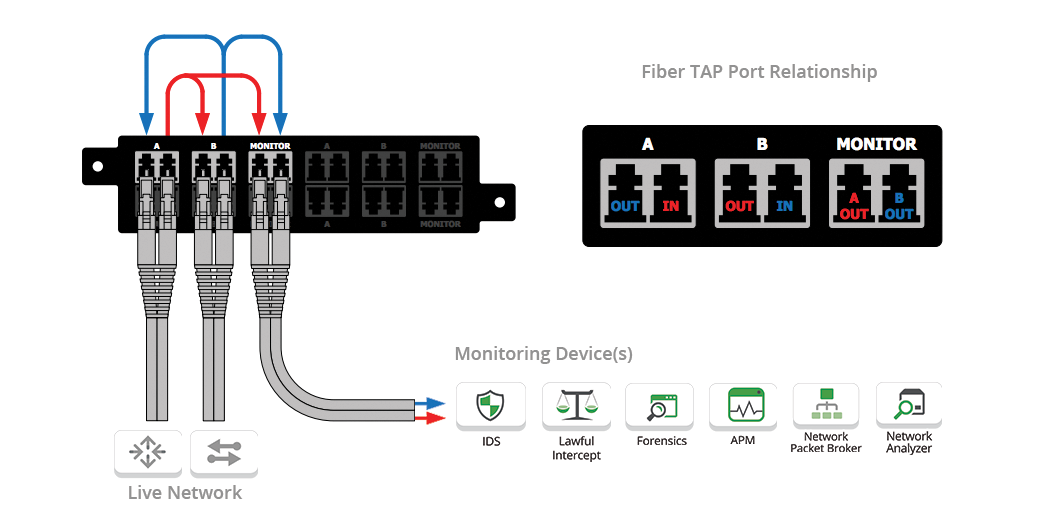

Garland's Multi-mode Passive Fiber Network TAP provide full duplex packet visibility guaranteeing your tools see every bit, byte, and packet.®
These TAPs are available in high density portable and 1U form factors and are non-powered devices that will not cause the live network devices to lose the link between one another if power is lost. Multi-mode TAPs are designed for short-range connectivity.










Key Features
- Provide 100% full duplex traffic visibility
- Supports tap 'Breakout' Mode
- Supports multi-mode OM1, OM2, OM3, OM4, OM5
- 100% secure and invisible; no IP address; no Mac address; cannot be hacked
- Passes physical layer errors
- Supports jumbo frames
Additional
-

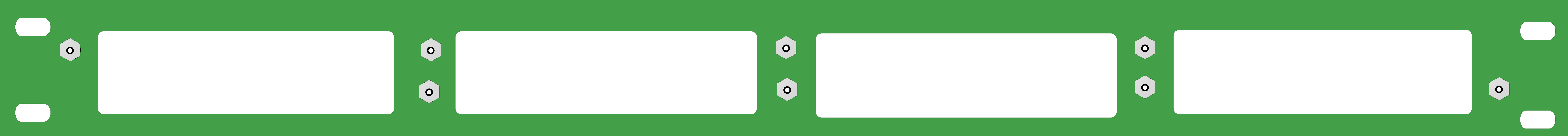

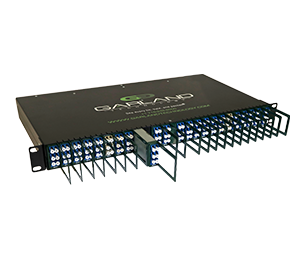

1U rack mount kit holds up to 4 modules, each module can have 1, 2, 3 or 4 TAPs
-

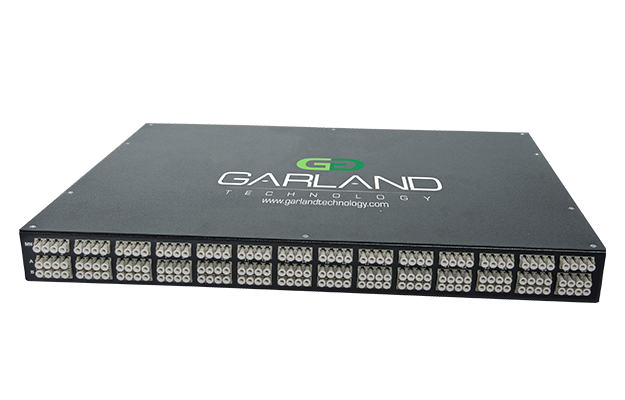

Exclusive 1U chassis holds 28 or 56 TAPs - 56 TAP units are populated front and back
-
Plug & Play easy installation, no configuration; no power source required
-
Made, tested and certified in the USA
Model No. | Network Speed | Ports | No. of TAPs | Split Ratio* | Wavelengths | Media | Connector/Mode |
---|---|---|---|---|---|---|---|
RMP-1U | ![]() |
1U Rack Mount Kit - Hold up to 4 Modules, each Module can have 1, 2, 3 or 4 portable TAPs | |||||
OM1501 | 1/10G | ![]() |
1 | 50/50 | 850/1300nm | Fiber-OM1 | LC Multi-Mode Fiber |
OM1701 | 1/10G | ![]() |
1 | 70/30 | 850/1300nm | Fiber-OM1 | LC Multi-Mode Fiber |
OM3501 | 1/10G | ![]() |
1 | 50/50 | 850/1300nm | Fiber-OM3 | LC Multi-Mode Fiber |
OM4501 | 1/10/25G | ![]() |
1 | 50/50 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM4701 | 1/10/25G | ![]() |
1 | 70/30 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM4701-40GSRBiDi | 40G | ![]() |
1 | 70/30 | 800-950nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM5501 | 1/10/25/40/100G* | ![]() |
1 | 50/50 | 850-950nm | Fiber OM5 | LC Multi-Mode Fiber |
OM5701 | 1/10/25/40/100G* | ![]() |
1 | 70/30 | 850-950nm | Fiber OM5 | LC Multi-Mode Fiber |
OM1502 | 1/10G | ![]() |
2 | 50/50 | 850/1300nm | Fiber-OM1 | LC Multi-Mode Fiber |
OM1702 | 1/10G | ![]() |
2 | 70/30 | 850/1300nm | Fiber-OM1 | LC Multi-Mode Fiber |
OM3502 | 1/10/25G | ![]() |
2 | 50/50 | 850/1300nm | Fiber-OM3 | LC Multi-Mode Fiber |
OM4502 | 1/10/25G | ![]() |
2 | 50/50 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM4702 | 1/10/25G | ![]() |
2 | 70/30 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM4702-40GSRBiDi | 40G | ![]() |
2 | 70/30 | 800-950nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM5502 | 1/10/25/40/100G* | ![]() |
2 | 50/50 | 850-950nm | Fiber OM5 | LC Multi-Mode Fiber |
OM5702 | 1/10/25/40/100G* | ![]() |
2 | 70/30 | 850-950nm | Fiber OM5 | LC Multi-Mode Fiber |
OM1503 | 1/10G | ![]() |
3 | 50/50 | 850/1300nm | Fiber-OM1 | LC Multi-Mode Fiber |
OM1703 | 1/10G | ![]() |
3 | 70/30 | 850/1300nm | Fiber-OM1 | LC Multi-Mode Fiber |
OM3503 | 1/10G | ![]() |
3 | 50/50 | 850/1300nm | Fiber-OM3 | LC Multi-Mode Fiber |
OM4503 | 1/10/25G | ![]() |
3 | 50/50 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM4703 | 1/10/25G | ![]() |
3 | 70/30 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM4703-40GSRBiDi | 40G | ![]() |
3 | 70/30 | 800-950nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM5503 | 1/10/25/40/100G* | ![]() |
3 | 50/50 | 850-950nm | Fiber OM5 | LC Multi-Mode Fiber |
OM5703 | 1/10/25/40/100G* | ![]() |
3 | 70/30 | 850-950nm | Fiber OM5 | LC Multi-Mode Fiber |
OM1504 | 1/10G | ![]() |
4 | 50/50 | 850/1300nm | Fiber-OM1 | LC Multi-Mode Fiber |
OM1704 | 1/10G | ![]() |
4 | 70/30 | 850/1300nm | Fiber-OM1 | LC Multi-Mode Fiber |
OM3504 | 1/10G | ![]() |
4 | 50/50 | 850/1300nm | Fiber-OM3 | LC Multi-Mode Fiber |
OM3704 | 1/10/25G | ![]() |
4 | 70/30 | 850nm | Fiber-OM3 | LC Multi-Mode Fiber |
OM4504 | 1/10/25G | ![]() |
4 | 50/50 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM4604 | 1/10/25G | ![]() |
4 | 60/40 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM4704 | 1/10/25G | ![]() |
4 | 70/30 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode Fiber |
OM5504 | 1/10/25/40/100G* | ![]() |
4 | 50/50 | 850-950nm | Fiber OM5 | LC Multi-Mode Fiber |
OM5704 | 1/10/25/40/100G* | ![]() |
4 | 70/30 | 850-950nm | Fiber OM5 | LC Multi-Mode Fiber |
Custom split ratios are available in 60/40, 80/20, or 90/10; please inquire. *100G SWDM4 |
Model No. | Network Speed | Chassis Size | No. of TAPs | Split Ratio* | Wavelengths | Media | Connector/Mode |
OM15028 | 1/10G | Chassis 1U | 28 | 50/50 | 850/1300nm | Fiber-OM1 | LC Multi-Mode |
OM17028 | 1/10G | Chassis 1U | 28 | 70/30 | 850/1300nm | Fiber-OM1 | LC Multi-Mode |
OM35028 | 1/10/25G | Chassis 1U | 28 | 50/50 | 850/1300nm | Fiber-OM3 | LC Multi-Mode |
OM45028 | 1/10/25G | Chassis 1U | 28 | 50/50 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode |
OM47028 | 1/10/25G | Chassis 1U | 28 | 70/30 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode |
OM55028 | 1/10/25/40/100G* | Chassis 1U | 28 | 50/50 | 850-950nm | Fiber OM5 | LC Multi-Mode |
OM57028 | 1/10/25/40/100G* | Chassis 1U | 28 | 70/30 | 850-950nm | Fiber OM5 | LC Multi-Mode |
OM15056 | 1/10G | Chassis 1U | 56 | 50/50 | 850/1300nm | Fiber-OM1 | LC Multi-Mode |
OM17056 | 1/10G | Chassis 1U | 56 | 70/30 | 850/1300nm | Fiber-OM1 | LC Multi-Mode |
OM35056 | 1/10/25G | Chassis 1U | 56 | 50/50 | 850/1300nm | Fiber-OM3 | LC Multi-Mode |
OM45056 | 1/10/25G | Chassis 1U | 56 | 50/50 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode |
OM47056 | 1/10/25G | Chassis 1U | 56 | 70/30 | 850nm | Fiber-OM3/OM4 | LC Multi-Mode |
OM55056 | 1/10/25/40/100G* | Chassis 1U | 56 | 50/50 | 850-950nm | Fiber OM5 | LC Multi-Mode |
OM57056 | 1/10/25/40/100G* | Chassis 1U | 56 | 70/30 | 850-950nm | Fiber OM5 | LC Multi-Mode |
Custom split ratios are available,please inquire. 56 1U Fiber TAPs are populated front and back *100G SWDM4 |
