PacketMAX: Advanced Aggregators
Optimize Network Traffic to Improve Security and Monitoring Tools with High Density Aggregation, Load Balancing, Replication, and Filtering
PacketMAXTM: Advanced Aggregators are part of Garland Technology’s purpose-built network packet broker line. These traffic aggregators are designed for high density filtering, aggregation, replication and load balancing to optimize port utilization of existing infrastructure, or as a stand alone device in L2-L4 filtering applications.
Garland’s Advanced Aggregators are scalable and flexible, offering a wide range of options to meet your traffic needs. With speeds from 1G / 10G / 25G / 40G / 100G, 1/2 rack, 1U and 2U high density form factors, and features like GRE/VXLAN Tunneling included with no additional per-port license fees, you have the ability to deploy what you need, when you need it.
We believe that securing and monitoring your network is the ultimate goal. Network packet brokers are critical to accomplishing that goal by providing the management of network traffic from multiple links to optimize the performance of your network monitoring and security tools.








Key Features
- Supports 1G/10G/25G/40G/100
- Aggregate network traffic to a single or multiple tools (1:1, 1:N, N:1, N:N)
- OpenFlow/SDN enabled
- NTP support
- Ingress filter support IPv4, IPv6 and UDF L2, L3 and L4
- Drop filter support IPv4, IPv6
- 1k filters
- Tunnel Encapsulate GRE, l2GRE and VxLAN
- Tunnel Decapsulate GRE, l2GRE and VxLAN
- MPLS support (strip 1 MPLS label)
- Session/flow aware load balancing
- Configurable hash-based load balancing
- Flow replication and port mirroring
Additional
- Restful API
- Data burst buffering
- Port splitting functionality
- Supports jumbo frames
- RADIUS authentication
- Import custom SSL certificates/HTTPS
- Remote management GUI and SSH
- Remote monitoring Syslog and SNMPv2c
- Hot swappable, dual power supplies AC standard, DC available
- No additional per-port license fees
Model No. | Ports | Network Speed | 1G Port | 1/10G Port | 25G Port | 40G Port | 100G Port | Power Supplies |
---|---|---|---|---|---|---|---|---|
AA1G52ACv2 | ![]() |
10M/100M/1G/10G |
(48) RJ45 |
*(4) SFP+ |
- |
- | - | AC |

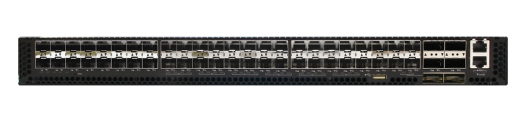

AA10G54AC | ![]() |
1G/10G/40G |
- |
(48) SFP/SFP+ |
- |
(6) QSFP+ | - | AC |
AA10G54DC | ![]() |
1G/10G/40G |
- |
(48) SFP/SFP+ |
- |
(6) QSFP+ |
- |
DC |
AA100G32AC | ![]() |
10G/25G/40G/100G | - | (32) 4x 10G | (32) 4x 25G | (32) QSFP+ | (32) QSFP28 | AC |
AA100G32DC | ![]() |
10G/25G/40G/100G | - | (32) 4x 10G | (32) 4x 25G | (32) QSFP+ | (32) QSFP28 | DC |

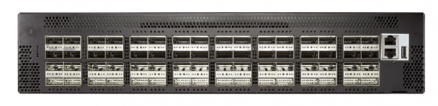

AA100G64AC | ![]() |
10G/25G/40G/100G |
- | (20) 4x 10G | (20) 4x 25G |
(64) QSFP+ |
(64) QSFP28 |
AC |
AA100G64DC | ![]() |
10G/25G/40G/100G |
- | (20) 4x 10G | (20) 4x 25G |
(64) QSFP+ |
(64) QSFP28 |
DC |
View available pluggables and cables |
