PacketMAX: Advanced Feature Packet Brokers
Extend the Feature Set of Existing Infrastructure and Reduce the Processing Load to Security and Monitoring Tools with Time Stamping, Packet Slicing, Filtering, Aggregation, and Load balancing
PacketMAXTM: Advanced Features are part of Garland Technology’s purpose-built network packet broker lines. These Advanced Features appliances are built to extend the feature set of any product. The system is designed to support NTP time stamping, packet slicing, traffic aggregation, GRE Tunneling, hash-based load balancing, and round-robin distribution. Adding these features to your existing infrastructure, can significantly reduce the processing overhead from security or monitoring tools.
Garland’s Advanced Features are scalable and flexible, offering a wide range of options to meet your needs. With available speeds from 1G / 10G / 40G / 100G, and GRE, L2GRE, ERSPAN, VxLAN Tunneling all included with no additional per-port license fees, you have the ability to deploy what features you need, when you need it.
We believe that securing and monitoring your network is the ultimate goal. Network packet brokers are critical to accomplishing that goal providing management of network traffic from multiple links to optimize the performance of your network monitoring and security tools.












Key Features
- Supports 10M/100M/1G/10G/40G/100G
- Time stamping
- Packet slicing
- High density filtering, aggregation, replication, hash-based load balancing / round-robin distribution
- Aggregate network traffic to a single or multiple tools (1:1, 1:N, N:1, N:N)
- Ingress filter support IPv4, IPv6 and UDF L2, L3 and L4
- Egress filter support IPv4, IPv6
- MPLS support (strip up to 9 MPLS labels, filter up to 3 MPLS labels)
- Tunnel Encapsulate GRE, L2GRE, VxLAN, ERSPAN
- Tunnel Decapsulate GRE, L2GRE, ERSPAN, VxLAN
- NETflow/IPFix support
- NTP support
- sFlow support
- Flow statistics
Additional
- Restful API
- Link Flapping support
- PPPoE support
- Supports jumbo frames
- Passes physical layer errors
- Port splitting functionality
- RADIUS and TACACS authentication
- Remote management CLI, GUI, and SSH
- Remote monitoring Syslog, SNMPv2c, SNMPv3 MD5/DES, SNMPv3 SHA/AES
- Hot swappable, dual power supplies, AC standard, DC available
- No additional per-port license fees
Model No. | Ports | Network Speed | 1G Port | 1/10G Port | 40G Port | 100G Port | Power Supplies |
---|---|---|---|---|---|---|---|

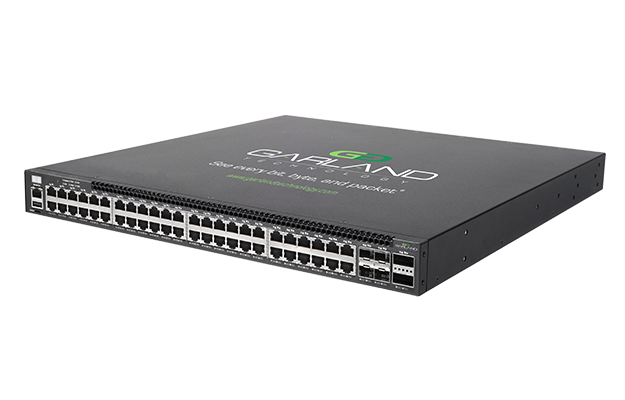

AF1G52AC | ![]() |
10/100/1000M |
(48) RJ-45 |
*(4) SFP+ |
- | - | AC |
AF1G52DC | ![]() |
10/100/1000M |
(48) RJ-45 |
*(4) SFP+ |
- | - | AC |
Model # | Ports | Network Speed | 10/100/1000M Port | 1G/10G Port | 25G | 40G | Power |
AF40G34AC | ![]() |
10/100/1000M/1G/10G/25G/40G |
16 | 8 | 8 | 2 | AC |
AF40G34DC | ![]() |
10/100/1000M/1G/10G/25G/40G |
16 | 8 | 8 | 2 | DC |
Model # | Ports | Network Speed | 1G/10G/25G Port | 40G/100G Port | Power |
AF25G80DAC | ![]() |
1G/10G/25G/40G/100G | 48 | 8 | AC |
AF25G80DDC | ![]() |
1G/10G/25G/40G/100G | 48 | 8 | DC |
Model # | Ports | Network Speed | 100G Port | 40G/100G Port | Power |
AF100G32DAC | ![]() |
40G/100G | 32 | 16/32* | AC |
AF100G32DDC | ![]() |
40G/100G | 32 | 16/32* | DC |
*Ports 1-8 100G only ports
Ports 9-24 100G/40G/4x25G/4x10G
Ports 25-32 100G only ports
Datasheets:
PacketMAX: Advanced Features
Pluggables & Cables
Use Cases:
Using Application Programming Interfaces (APIs) to manage multiple devices
Related Blogs:
Unleash the Power of Packet Slicing and Time Stamping in your Network
![]() |
![]() |
Model # | Ports | Network Speed | 10/100/1000M Port | 1G/10G Port | 25G | 40G | Power |
AF40G34AC | ![]() |
10/100/1000M/1G/10G/25G/40G |
16 | 8 | 8 | 2 | AC |
AF40G34DC | ![]() |
10/100/1000M/1G/10G/25G/40G |
16 | 8 | 8 | 2 | DC |
Model # | Ports | Network Speed | 1G/10G/25G Port | 40G/100G Port | Power |
AF25G80DAC | ![]() |
1G/10G/25G/40G/100G | 48 | 8 | AC |
AF25G80DDC | ![]() |
1G/10G/25G/40G/100G | 48 | 8 | DC |
Model # | Ports | Network Speed | 100G Port | 40G/100G Port* | Power |
AF100G32DAC | ![]() |
40G/100G | 32 | 16/32* | AC |
AF100G32DDC | ![]() |
40G/100G | 32 | 16/32* | DC |
*Ports 1-8 100G only ports
Ports 9-24 100G/40G/4x25G/4x10G
Ports 25-32 100G only ports
